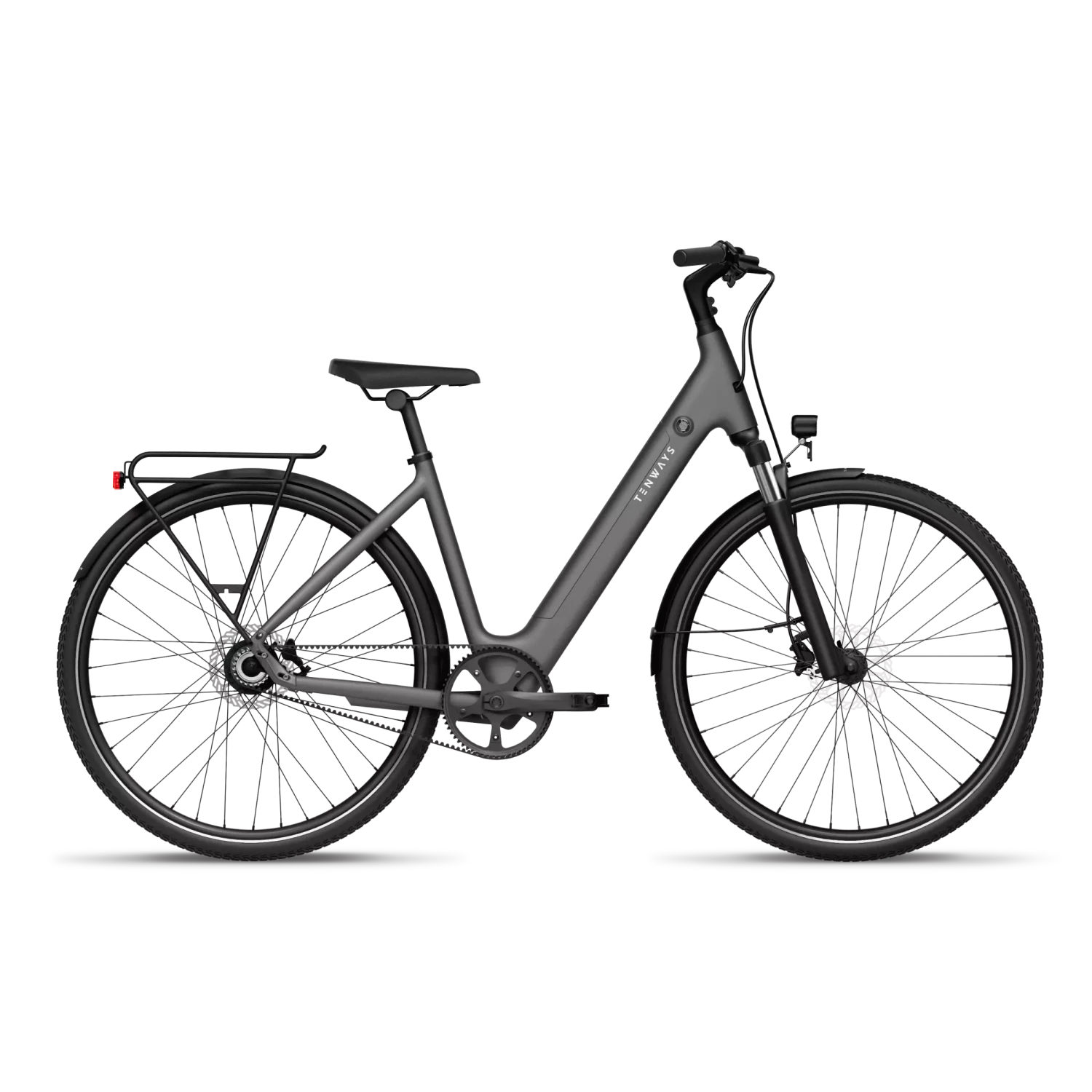

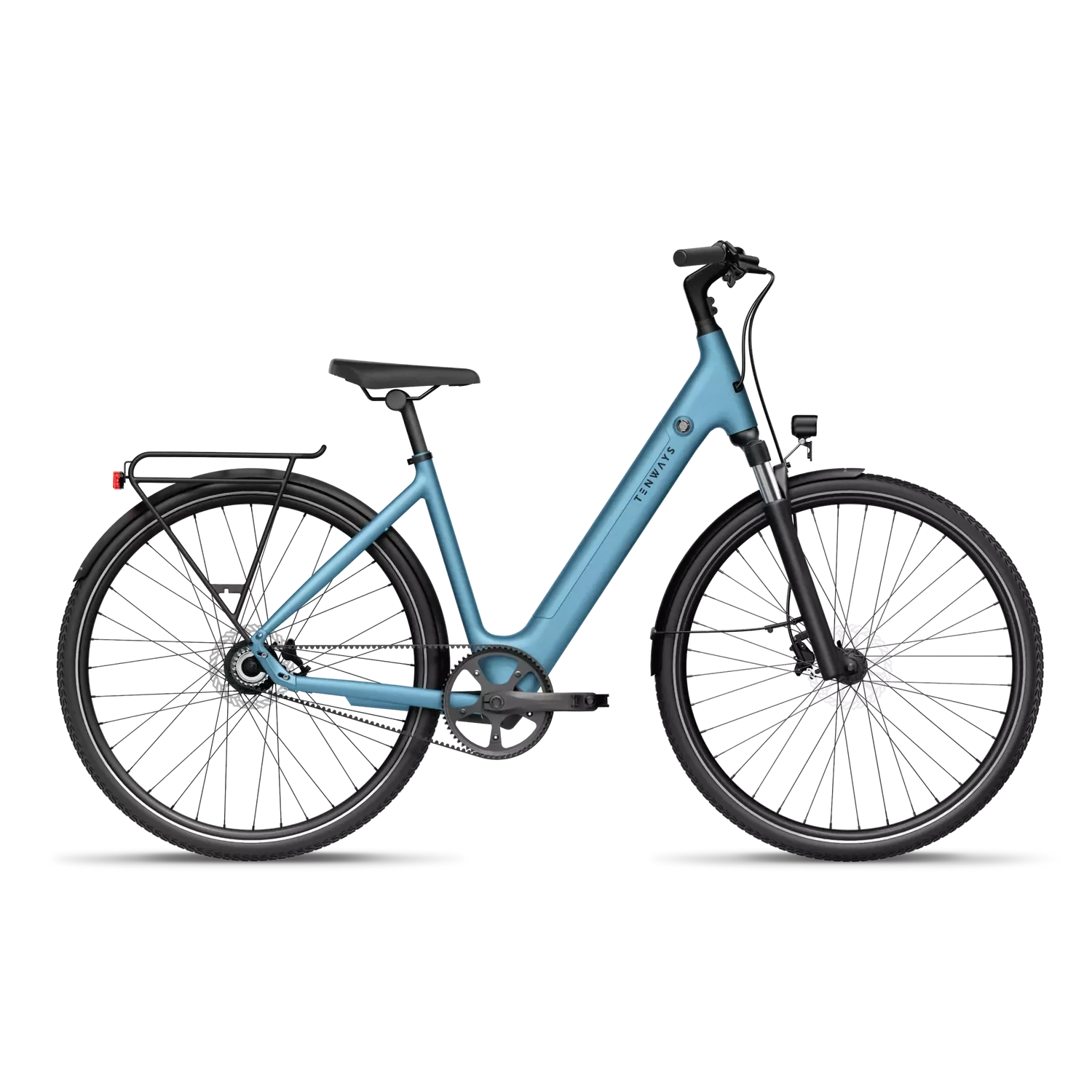

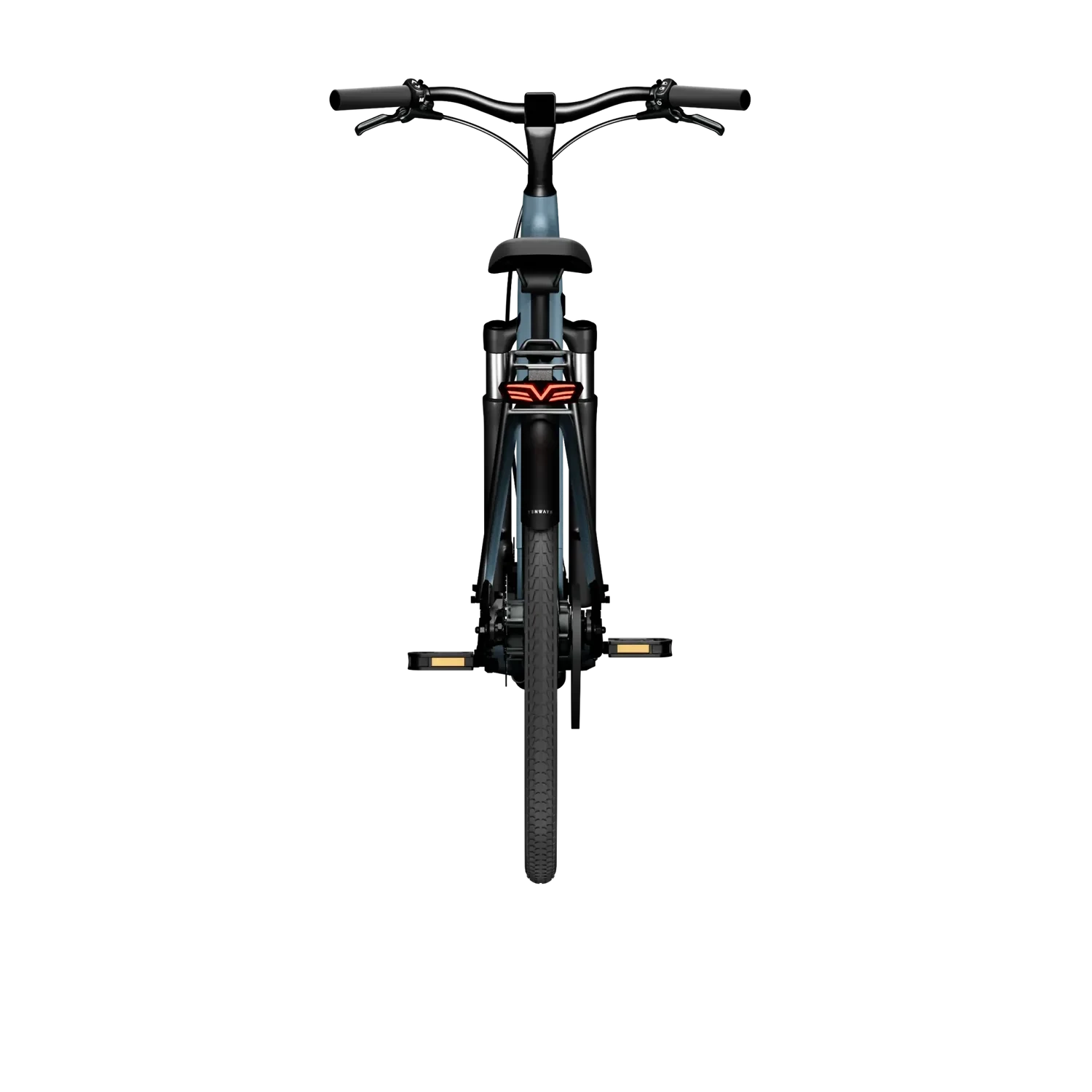

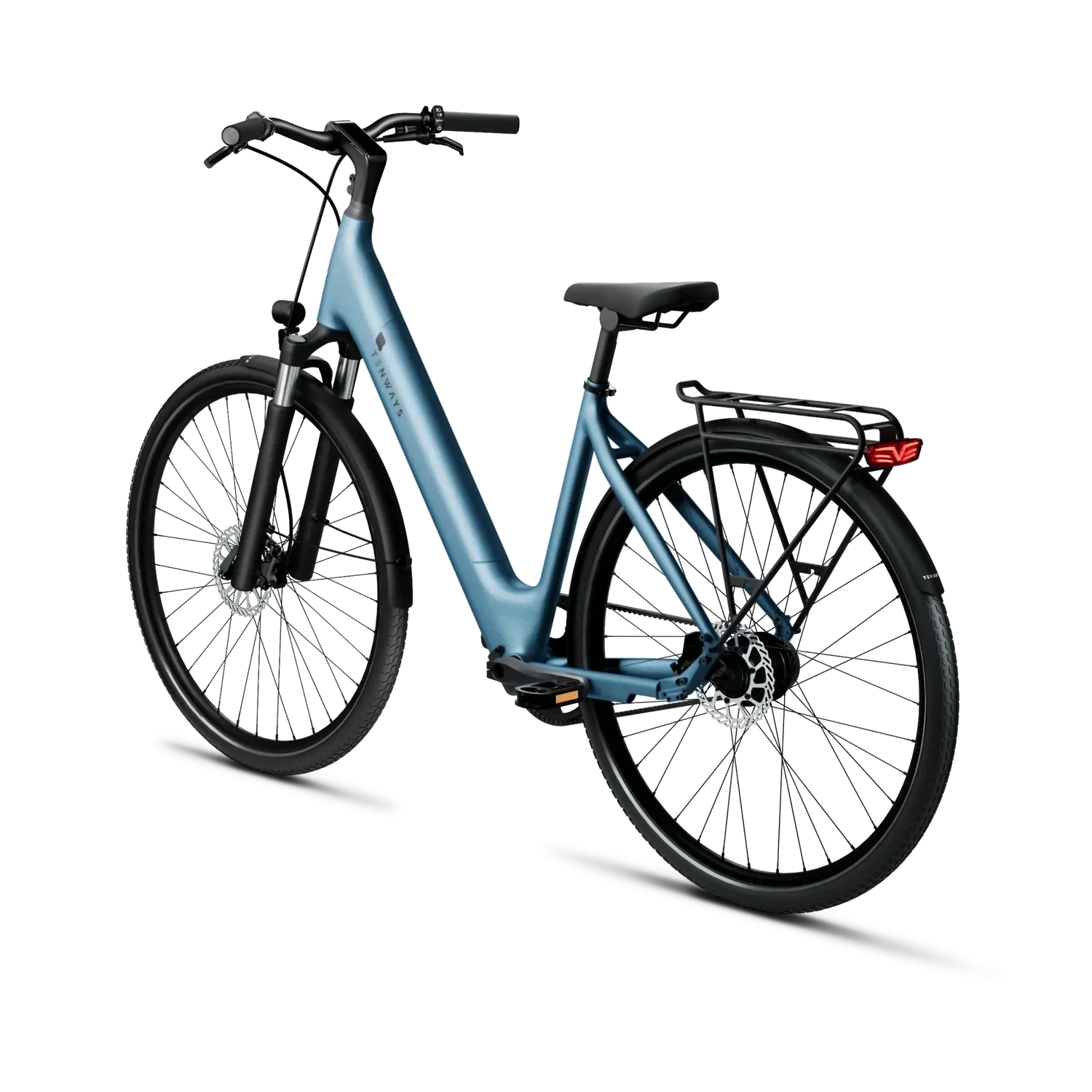

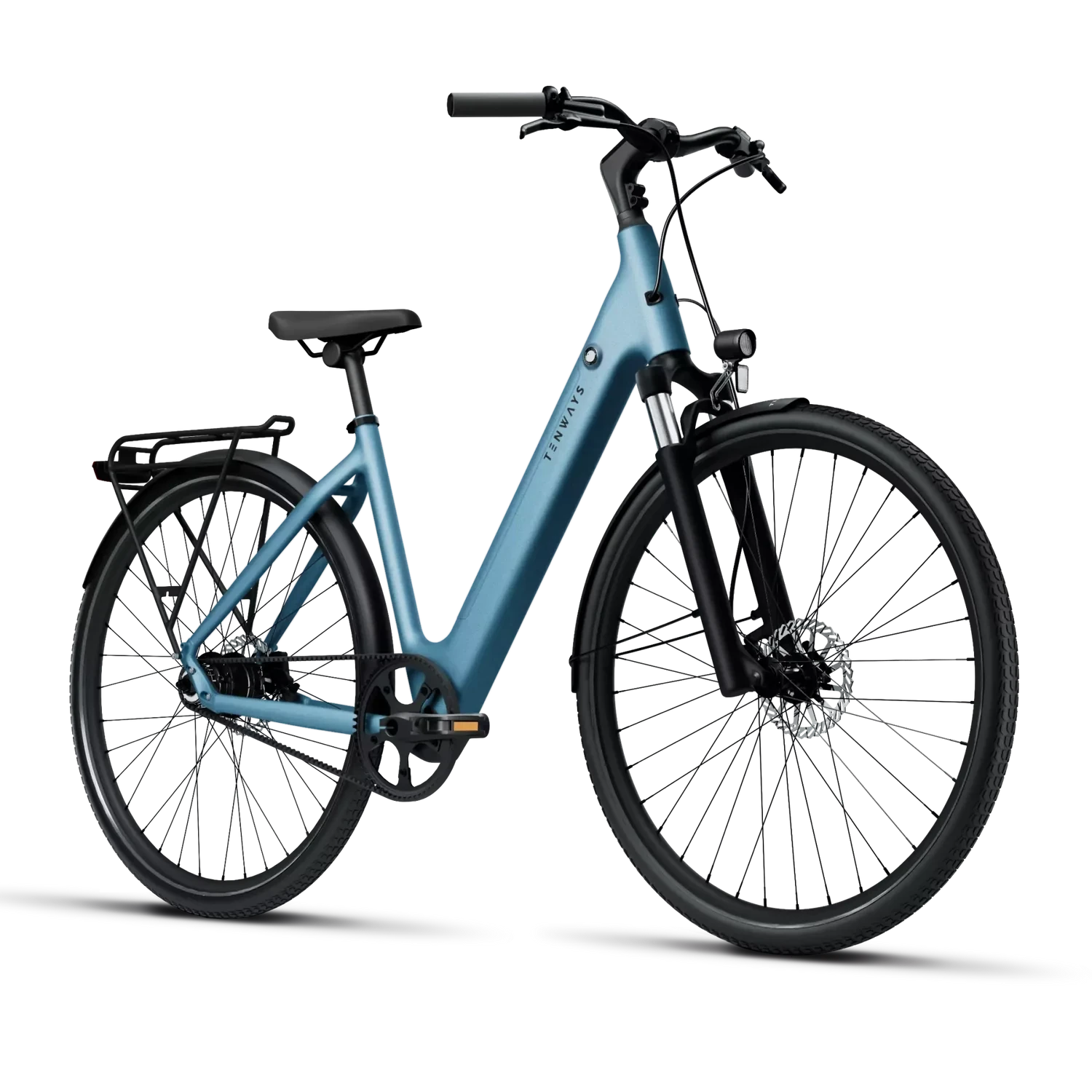

Tenways CGO800S Urban City Belt Drive E-Bike

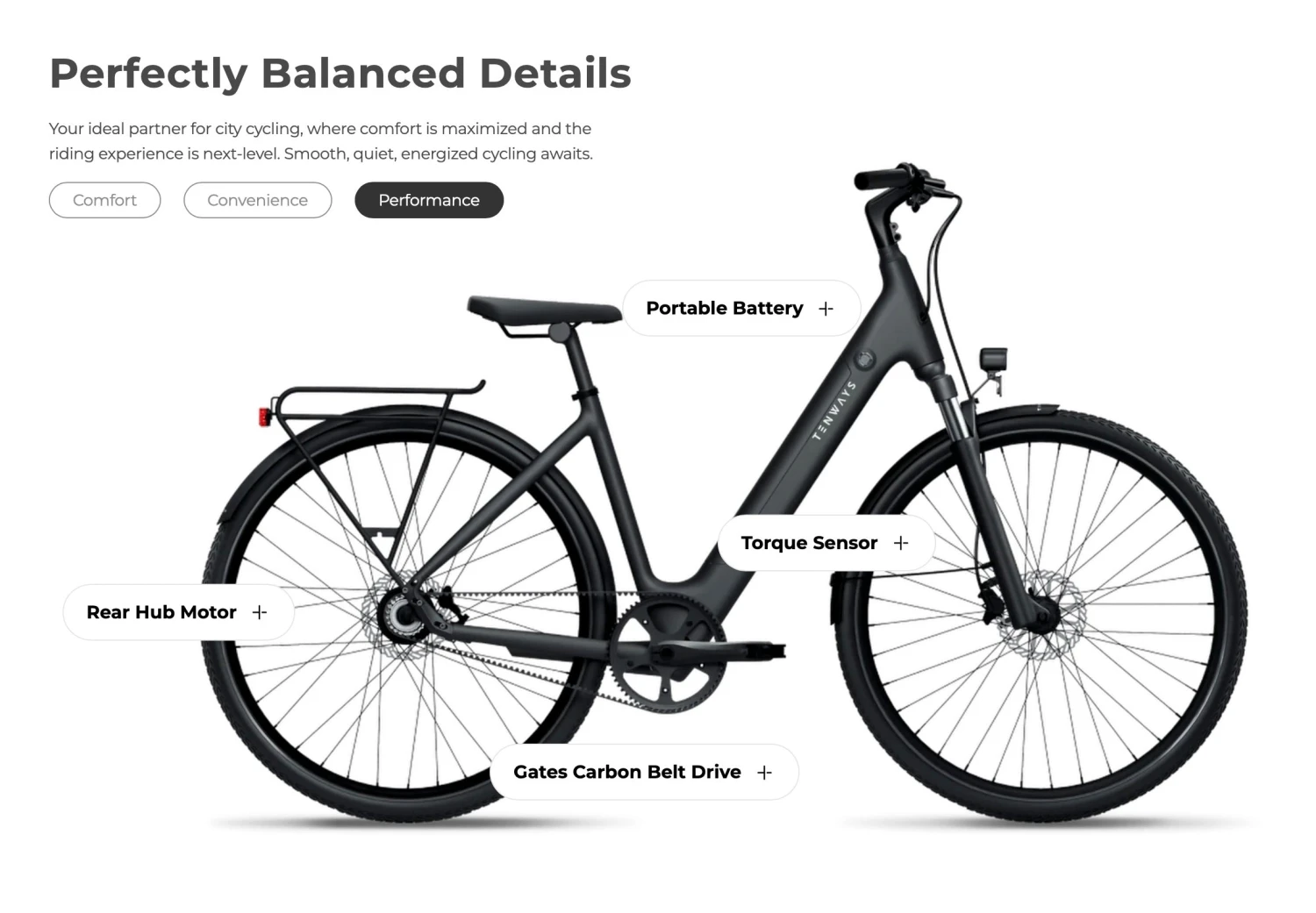

• Step-through Frame
• Portable Battery
• Up to 100 km Range
• Gates Carbon Belt
• Magnetic Torque Sensor
• Suspension Front Fork
• Rear Hub Motor

Sleek and stylish minimalism, with every last detail considered, all for your cycling delight.

ONE SIZE – *For riders of 155-190 cm / 5’1” ~ 6’3” height

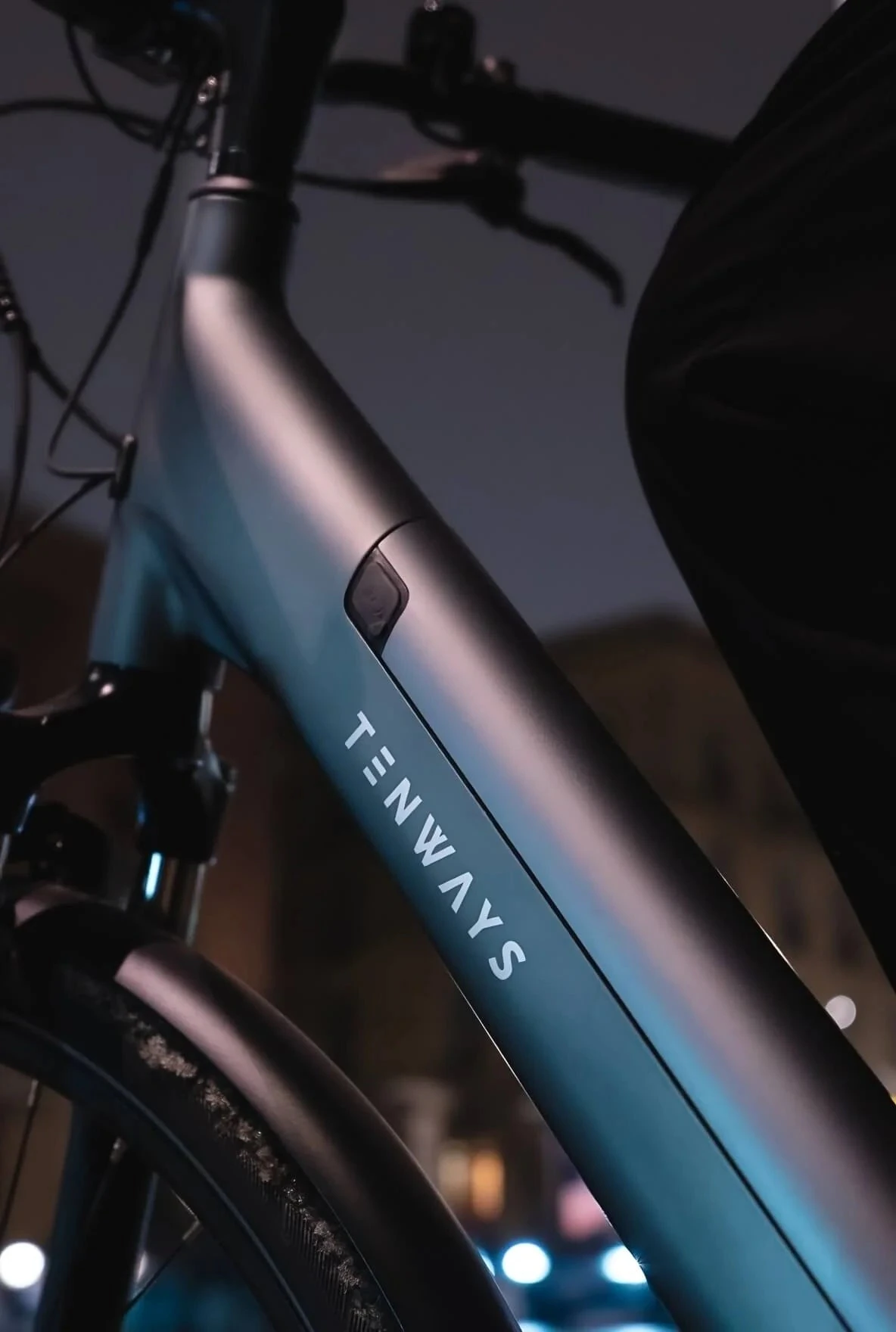

Seamless battery integration that is hard to notice from a distance. Up to 100 km range per charge. 374wh large capacity battery.

Torque Sensor – A silky-smooth powered ride as if your legs had a gifted energy. 0 time lag, instantaneous response and natural feel.

Gates Carbon Belt Drive – Neat, light, and totally maintenance-free. Ride in long pants or dresses with absolute peace of mind. Zero maintenance required.

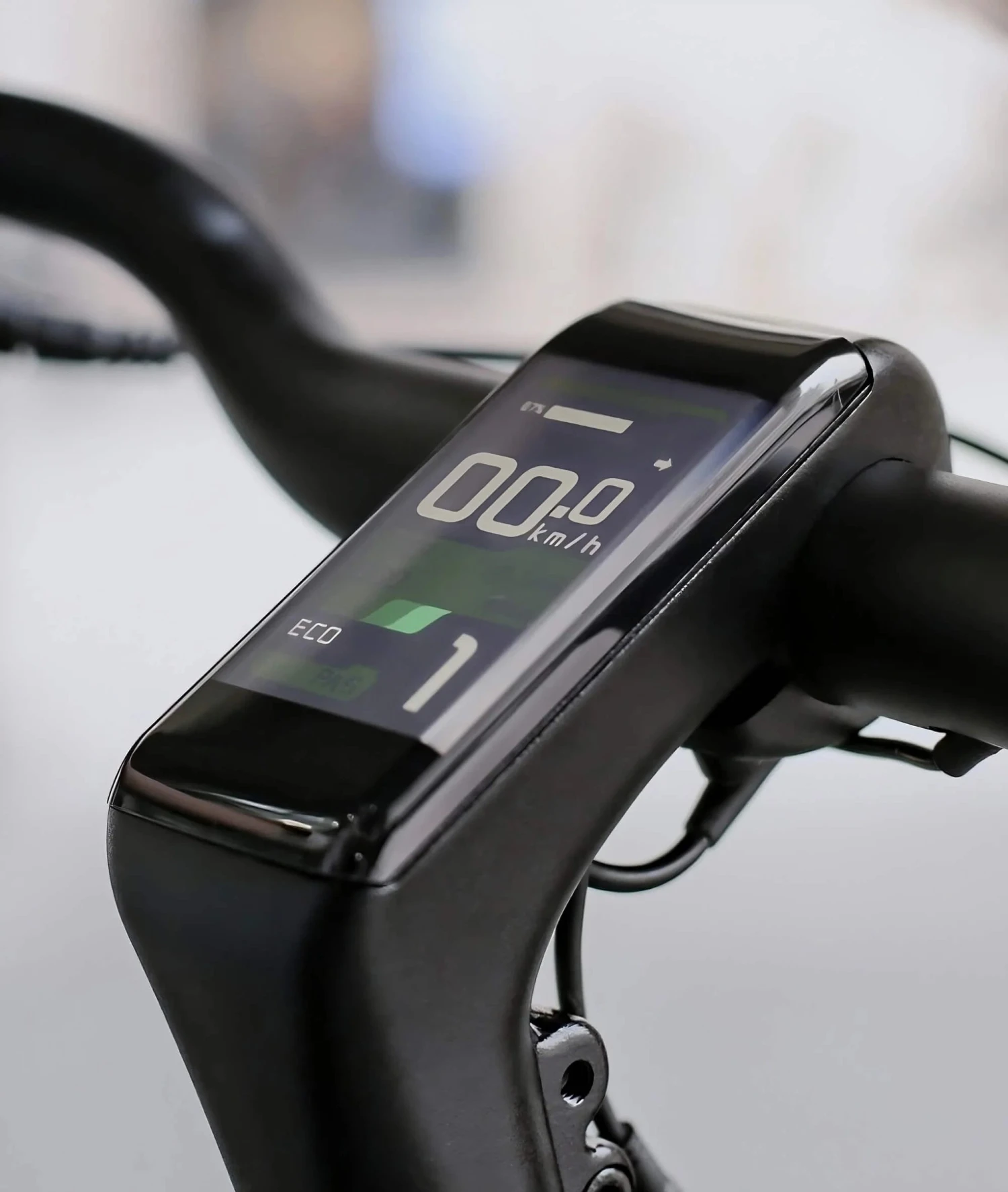

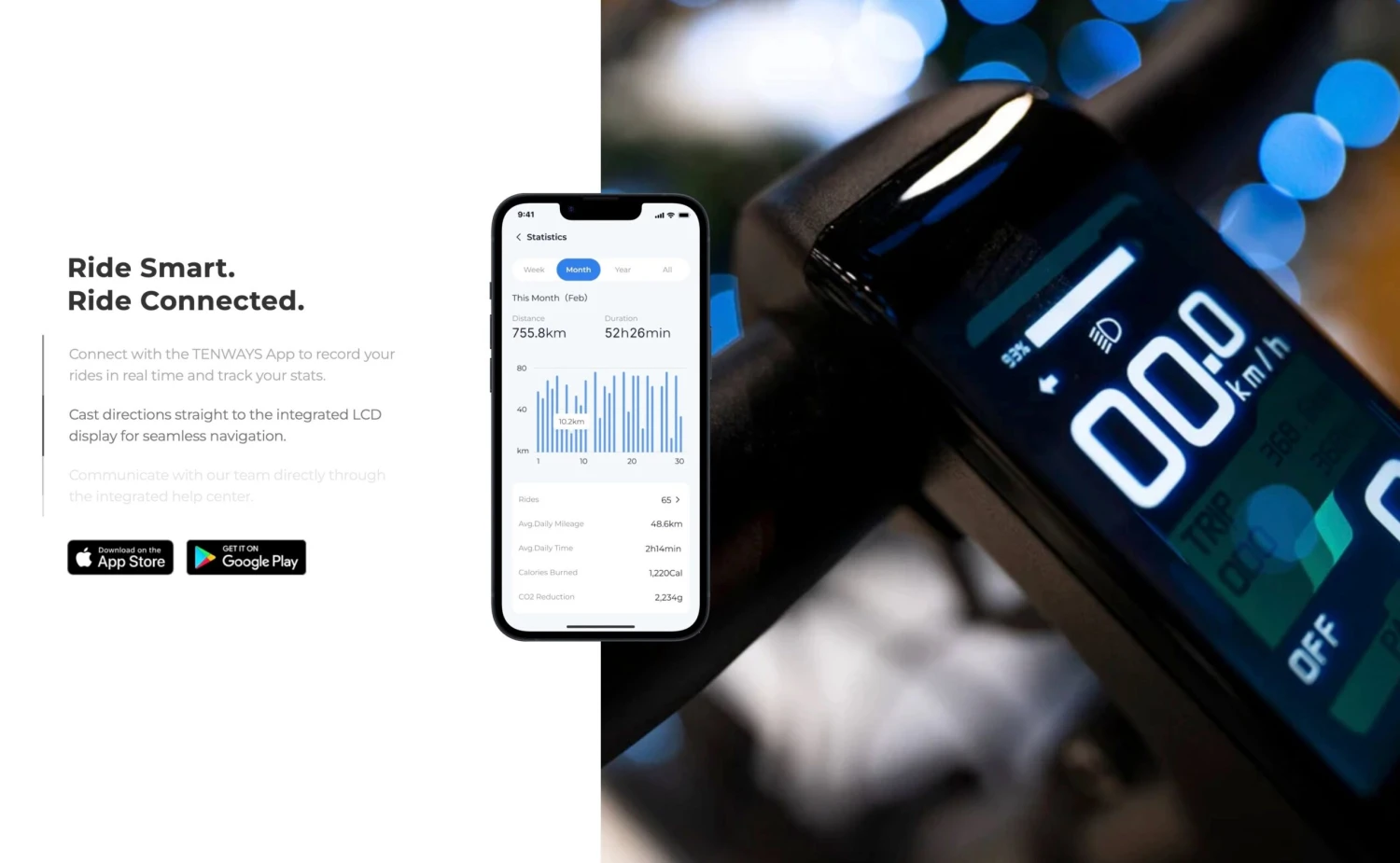

Integrated Display – An excellent blend of style and functionality. App navigation enabled to help you stay focused on the road ahead. No phone holder required.

Motor
Mivice M070 Rear Hub Motor (250W Power, 40 Nm Max. Torque)

Battery
36V, 10.4Ah Lithium-ion Battery with 18650 cells

Display
Integrated Smart LCD Display

Sensor
Mivice S200B Torque Sensor

Controller
Mivice C201 Controller

Lights
StVZO-compliant

Top Speed
15.5 mph*

*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.

Range
Up to 62.1 miles*

*Actual performance will vary depending on temperature, road conditions, rider’s weight, etc.

Climbing Ability
Suitable for flat roads*

*The actual performance would depend on the rider’s physical strength.

Frame
6061 Aluminium Frame

Front Fork
SR SUNTOUR Suspension Front Fork

Crankset
Gates CDX Crankset

Drivetrain
Single-speed Drivetrain

Gates CDN Carbon Belt

Tires
CST Puncture-proof 700*48C size Tires

Bottom Bracket
Fully-concealed Bottom Bracket

Wheels
28″ Aluminium Rims

Brake
TEKTRO Hydraulic Disc Brakes

Weight*
Net weight: 41.9 lbs (excluding all accessories)
Full weight: 50.7 lbs (including all accessories)
Permissible Max. Weight: 319.7 lbs

*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
