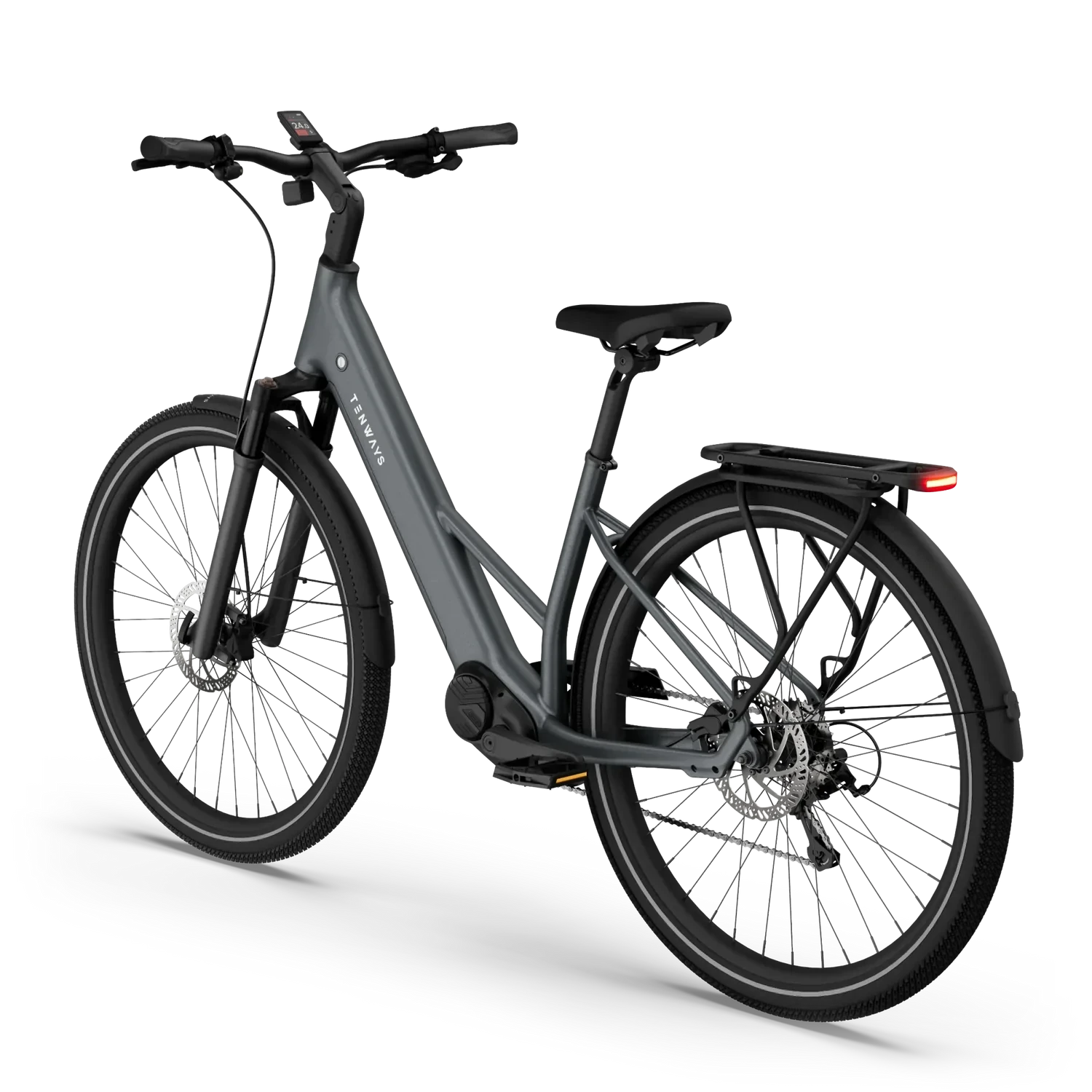

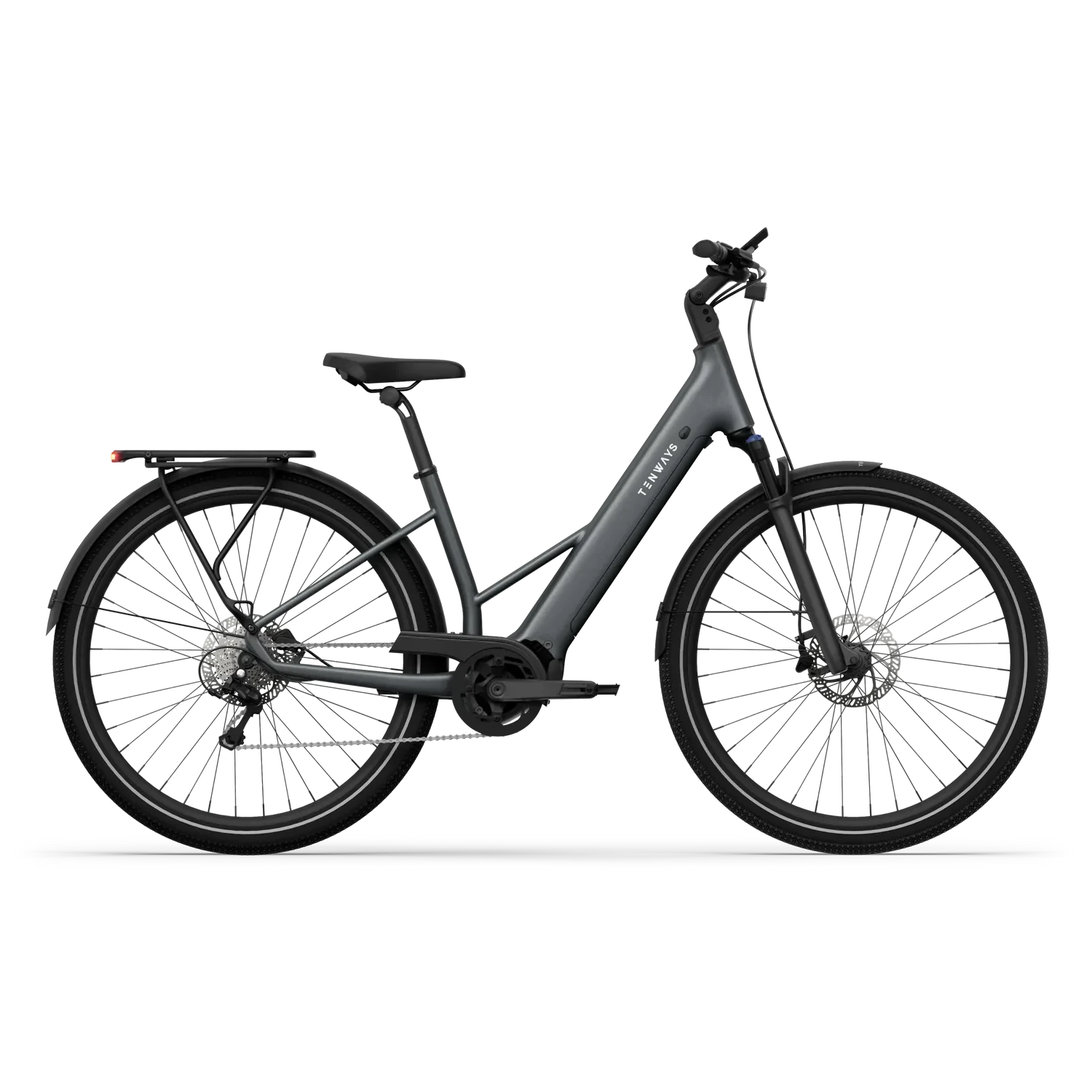

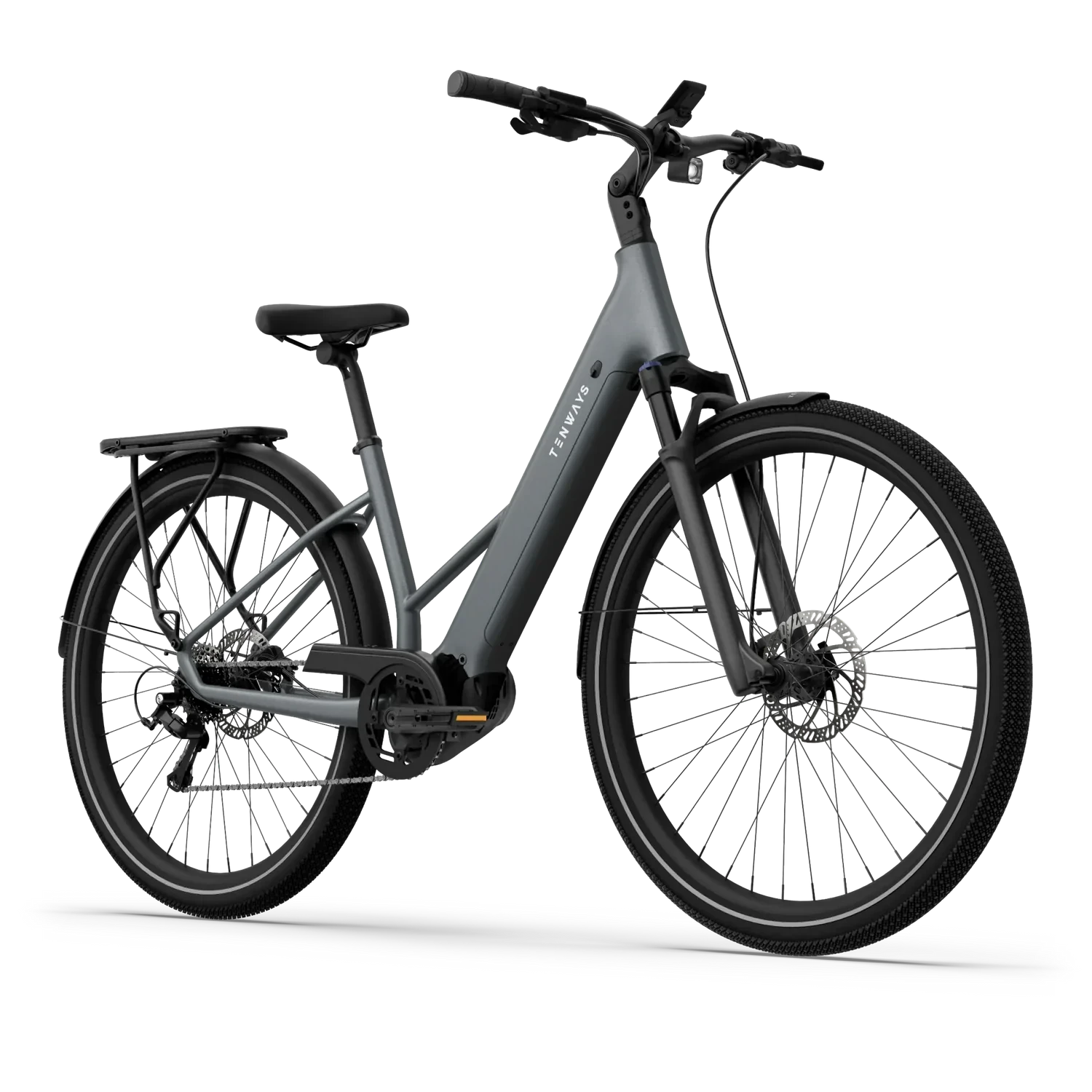

Tenways Ago Air Arctic Grey 2025 Urban Trekking E-Bike

• 560 Wh Portable Battery
• 80 Nm Mid-drive Motor
• Shimano 9-speed Drivetrain
• Suspension Front Fork

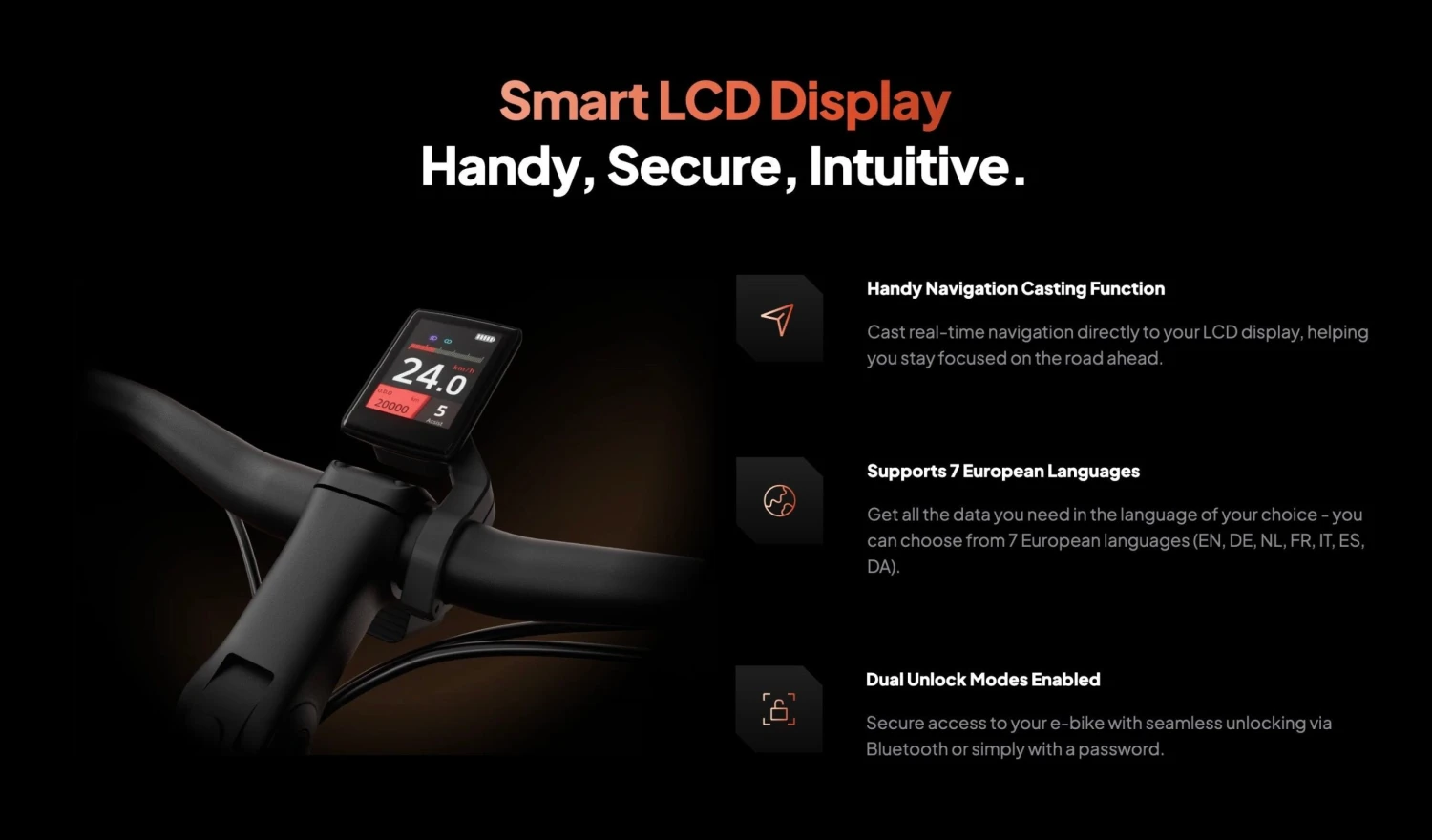

• Smart LCD Display

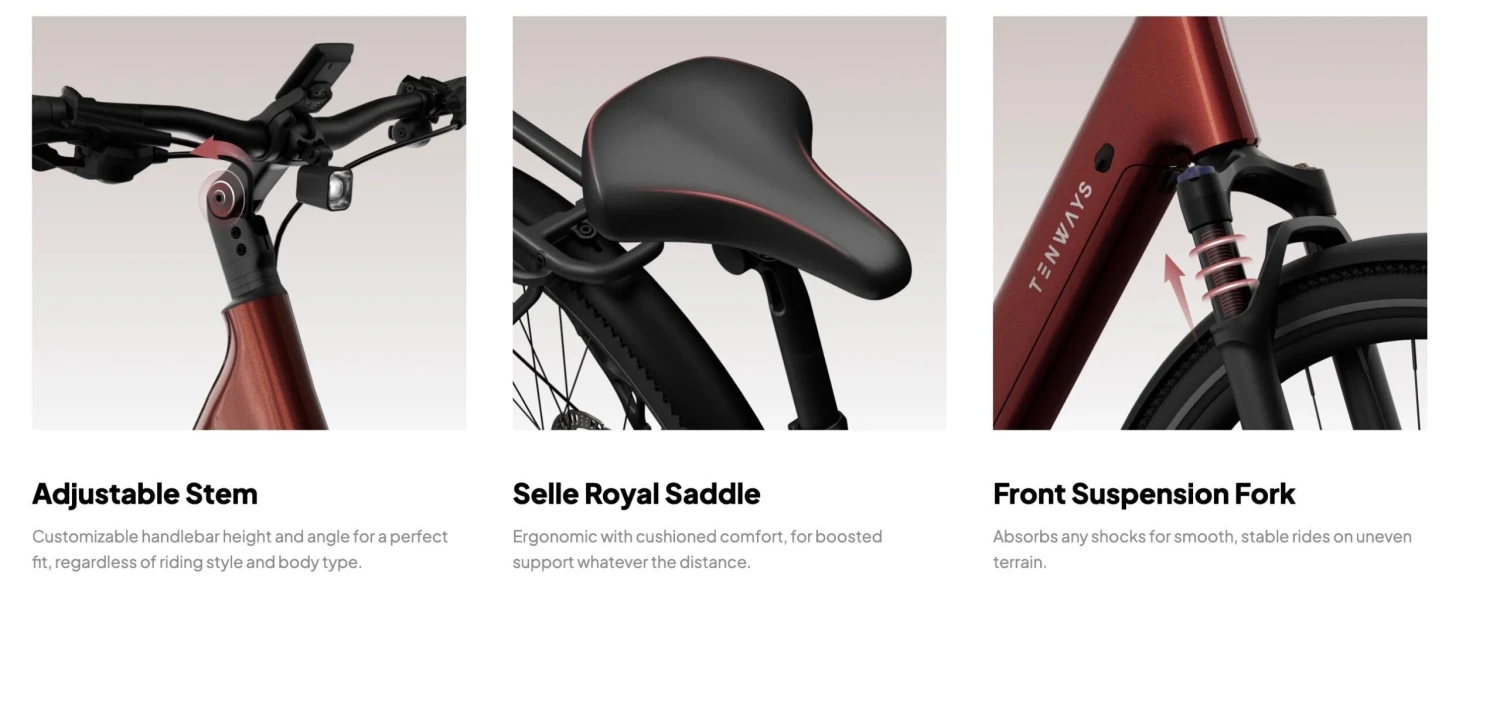

• Adjustable Stem
• Hydraulic Disc Brakes

ELECTRONIC
Motor
TENWAYS Mid-drive Motor (250 W Power, 80 Nm Max. Torque)

Controller
Integrated Controller of the Mid-drive Motor

Sensor
Integrated Torque Sensor for the Mid-drive Motor

Display
DIGIWISE BC240+K 31 TFT color Display

Battery
561.6 Wh (36 V, 15.6 Ah ) Lithium-ion Battery

Lights
StVZO-compliant

PERFORMANCE
Top Speed
25 km/h*

*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.

Range
Up to 100 km*

*Actual performance will vary depending on temperature, road conditions, rider’s weight, etc.

Climbing Ability
Suitable for Climbing Slopes*

*The actual performance would depend on the rider’s physical strength.

COMPONENTS
Frame
Alloy Frame

Crankset
Alloy 170mm Powder paint black

Wheels
ALLOY DB RIM AND ALLOY BEARING HUB

Drivetrain
SHIMANO CUES 9-SP

Brake
SHIMANO Hydraulic Disc Brakes

Tires
KENDA 700*50C 60TPI EPS/Reflective line

Front Fork
ZOOM 188NS-700C-HLO SUSPENSION FORK

Bottom Bracket
BAFANG

Weight*
Net weight: 24.85 kg
(excluding all accessories)

Full weight: 27.4 kg
(including all accessories)


Permissible Max. Weight: 145 kg

*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
