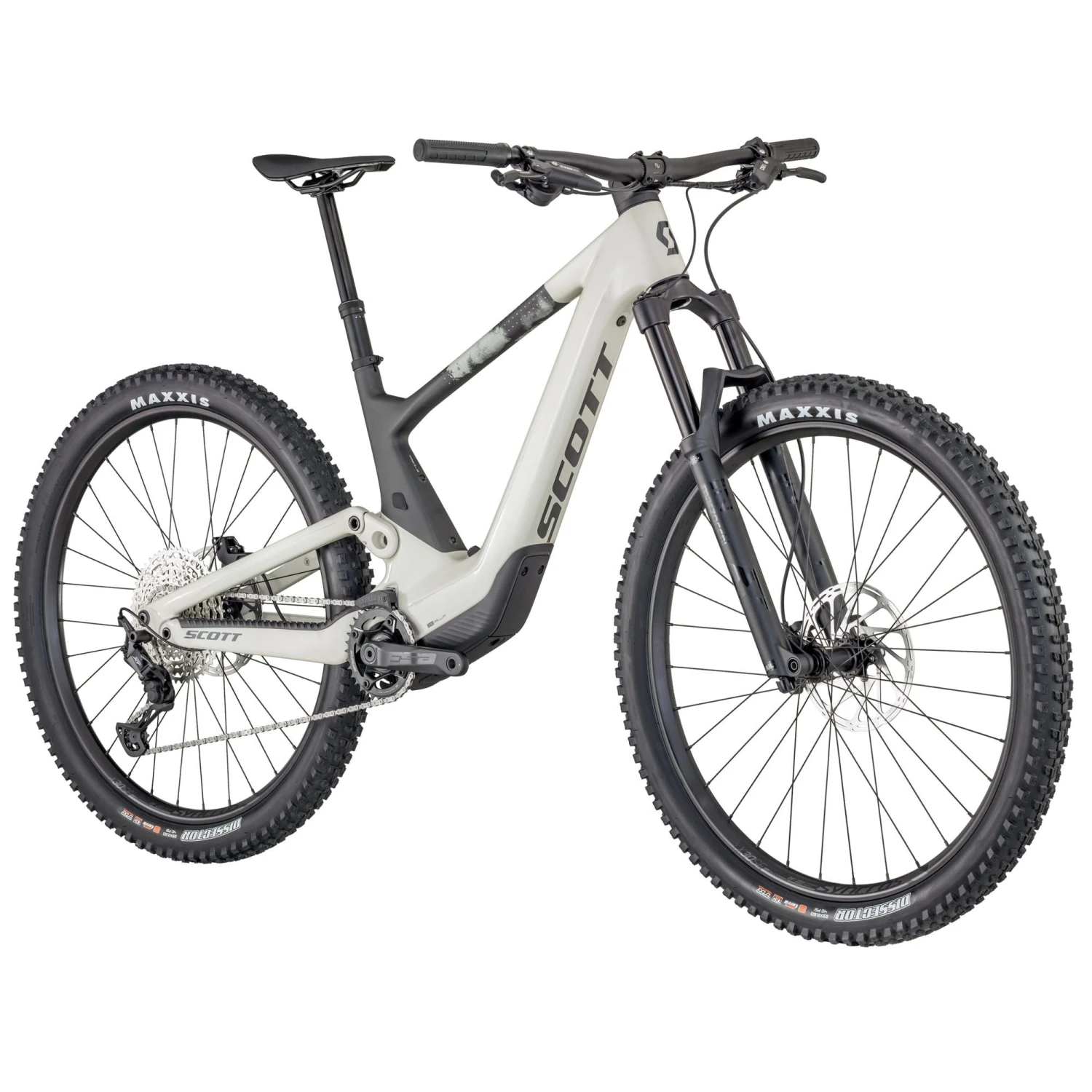

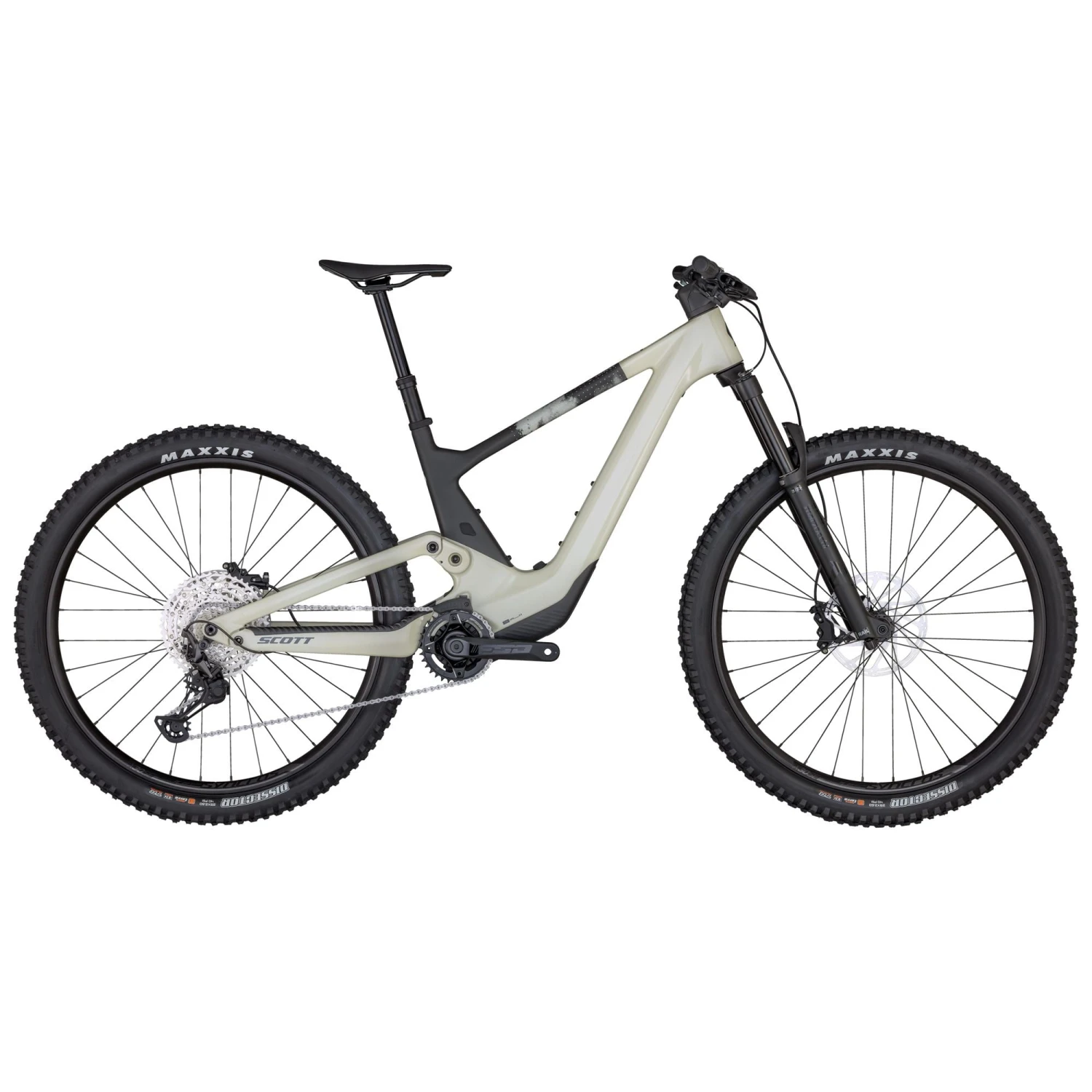

Scott Voltage ERIDE 920 2025 FS Electric Mountain Bike

Imagine giving the world’s best trail bike a secret weapon. With the Voltage eRIDE, that’s just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail… after trail.

Frame

Carbon HMF

Integrated Suspension Technology

Virtual 4 Link kinematic / Adjustable head angle

Syncros Cable Integration System

TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline

Range Extender Ready

Travel

Front: 150mm / Rear: 155mm

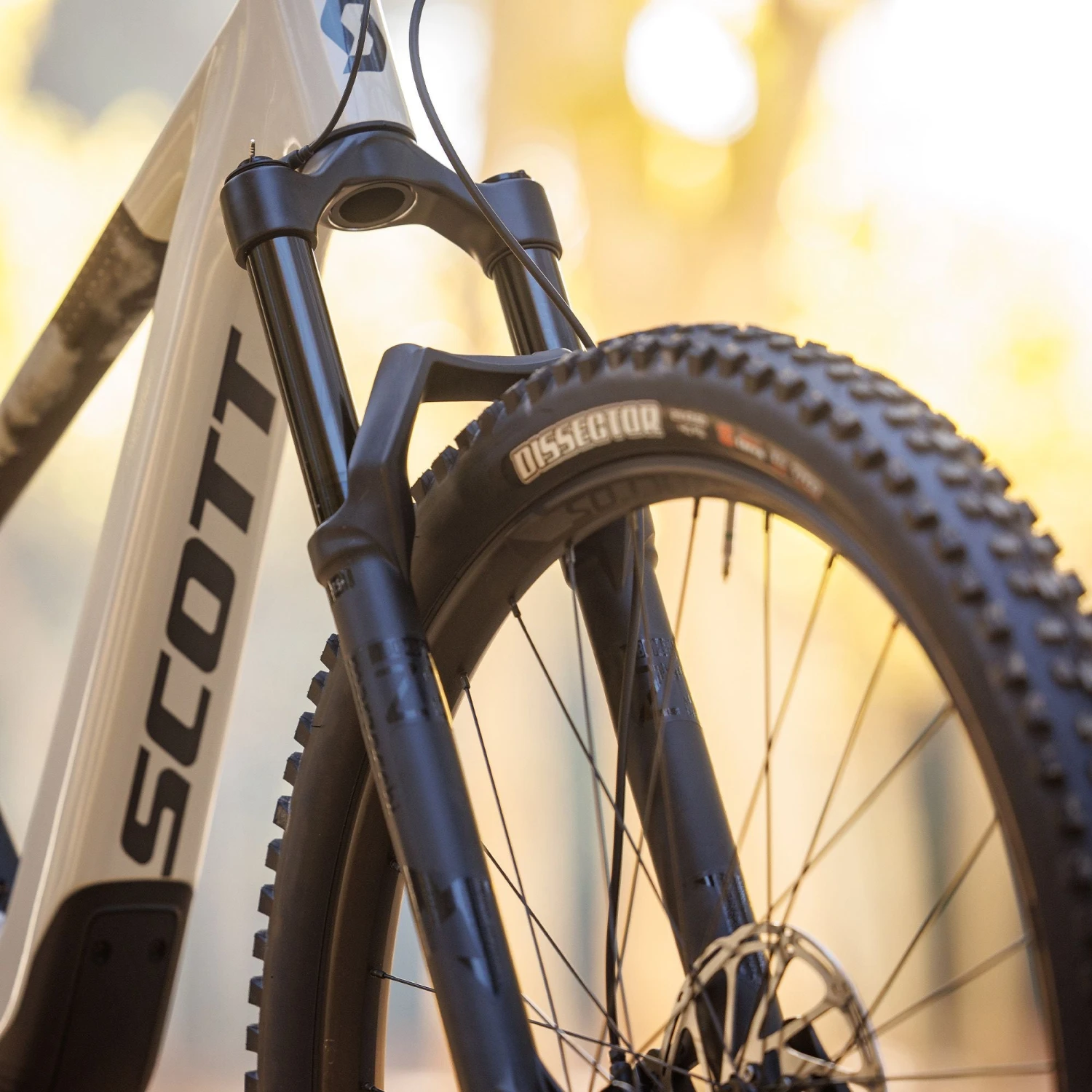

Fork

Marzocchi Z2 Air Rail

3 modes / 15x110mm QR axle / tapered steerer

44mm offset / Reb. Adj. / Lockout / 150mm travel

Rear Shock

FOX Float Custom EVOL Performace Trunnion

3 modes / Lockout-Trail-Descend

DPS / Reb. Adj.

Travel 155mm / T185X55mm

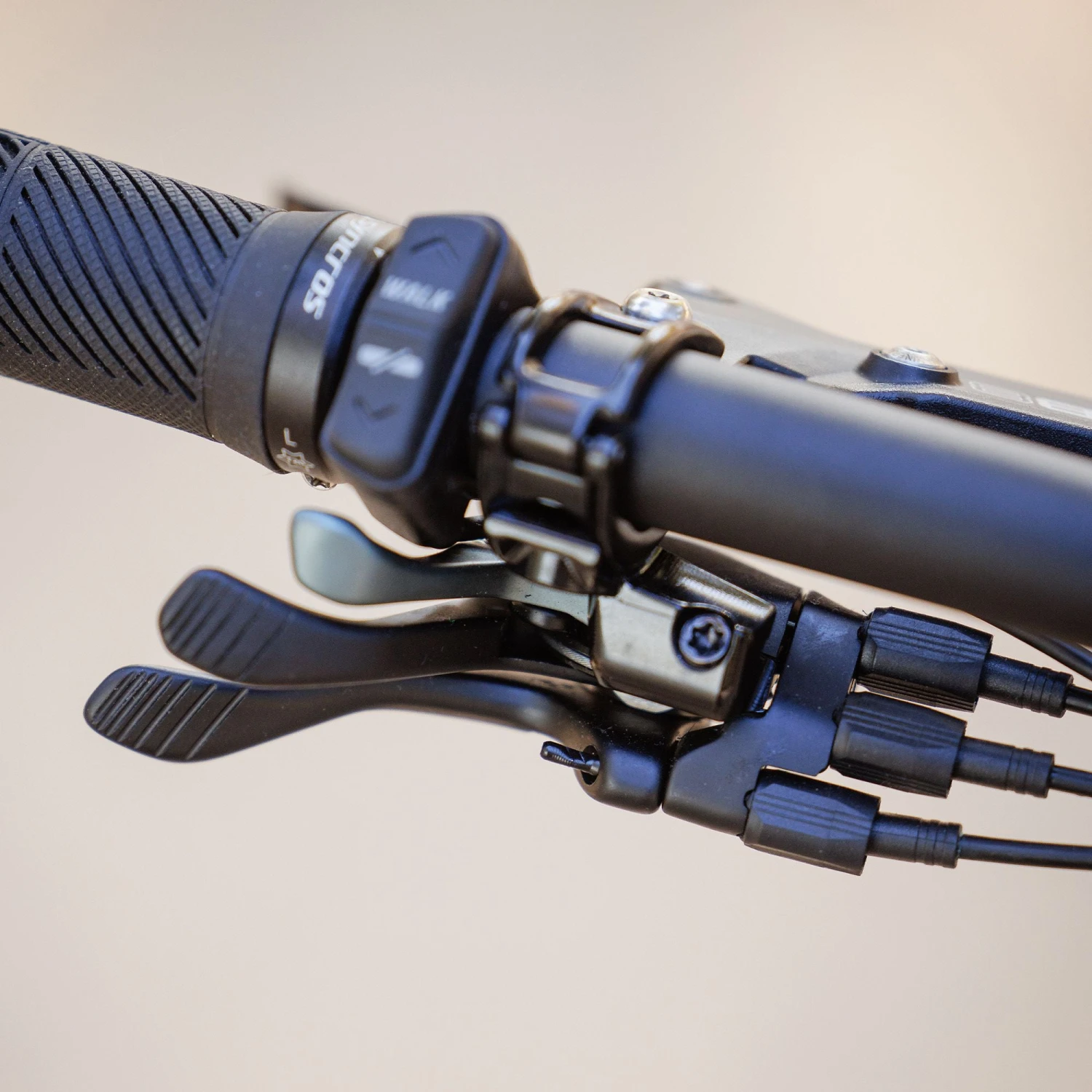

Remote System

SCOTT TwinLoc 2 Technology

Suspension & Dropper Remote

3 Suspension modes

Drive Unit

TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

Battery

TQ Internal 360Wh

Display

TQ HPR

Bluetooth / ANT+ / Dedicated Smartphone app

Charger

TQ 100-240V-4A

Rear Derailleur

Shimano XT RD-M8100 SGS

Shadow Plus / 12 Speed

Shifters

Shimano Deore SL-M6100-IR / Rapidfire Plus

I-spec EV clamp

Crankset

FSA Alloy crankset / 175mm / 34T

Chainguide

e*thirteen / e*spec Slider

Chainring

Scott custom spider / FSA 12Speed 34T chainring

Chain

Shimano CN-M6100

Cassette

Shimano CS-M6100 / 10-51 T

Brakes

SRAM DB8 4 Piston Disc

Rotor

SRAM Centerline CL Rotors F&R 200mm

Handlebar

Syncros Hixon 2.0 Alloy 6061 D.B.

12mm Rise / back sweep 8° / 780mm

Syncros Endurance lock-on grips

H’stem

Syncros AM 2.0

Syncros Cable Integration System

4° rise / 6061 Alloy / 31.8mm / 1 1/8″

Seatpost

Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm

S size 140mm / M size 180mm / L & XL size 210mm

Seat

Syncros Tofino 2.0 Regular

Headset

Syncros – Acros Angle adjust & Cable Routing HS System

Stainless / +-0.6° head angle adjustment

ZS56/28.6 – ZS56/40 MTB

Hub (Front)

Formula CL-811 / 15x110mm

Hub (Rear)

Formula CL-148M / 12x148mm

Spokes

Stainless Black 15G / 1.8mm

Rims

Syncros X-30S / 32H / 30mm / Sleeve Joint

Tubeless ready

Front Tire

Maxxis Dissector / 29×2.6″ / 60TPI Wire Bead

EXO

Dual

Rear Tire

Maxxis Dissector / 29×2.6″ / 60TPI Wire Bead

EXO

Dual

Approx weight in KG

19.3 (with tubes)

Max. System Weight

128 kg

The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

Please note that bike specifications are subject to change without prior notice.
