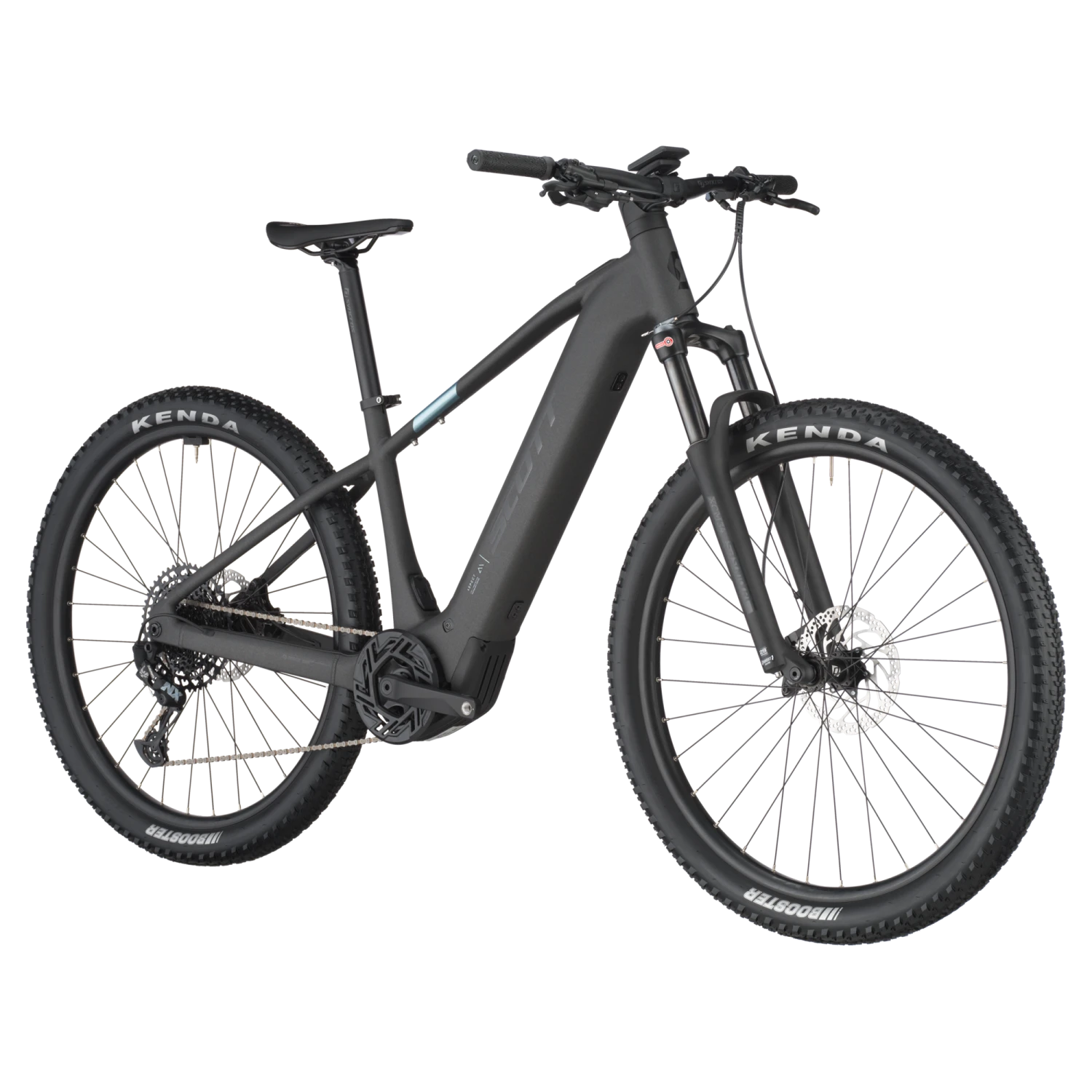

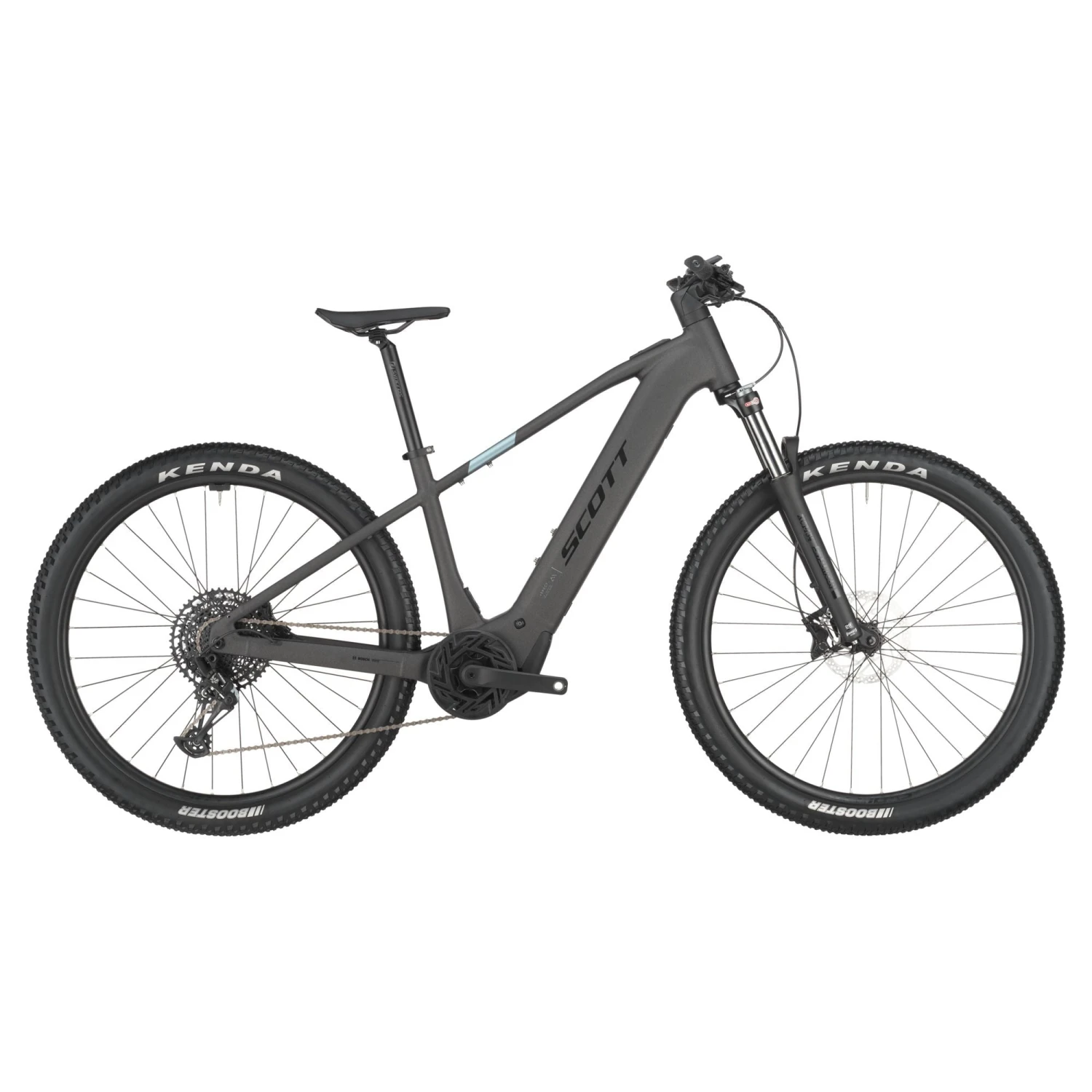

More autonomy, more connectivity and the latest Bosch technology featured in an accessible package. From off road commuting to your local trails, the Aspect is all about versatility and fun.
OTHER SIZES AVAILABLE FROM SUPPLIER
Please note that bike specifications are subject to change without prior notice
- SR Suntour XCM34 RL Coil 120mm Fork
- SRAM SX-NX Eagle 12 Speed
- Shimano BR-MT420 Disc Brakes
- Kenda Booster tires
- Syncros Parts
- Bosch Light Cable pre-installed F&R
Frame
Alloy XS-XL=29″, 6061 Alloy custom butted tubing
Side extraction battery
UDH Interface, 12x148mm with 52mm Chainline
Travel
120mm
Fork
SR Suntour XCM34 RL Coil, Tapered 120mm Travel, 15×110 bolt Axle, Remote Lock Out
Remote System
SR Suntour Remote
Drive Unit
Bosch Performance CX, EU: 25kmh
Battery
PowerTube 600Wh
Display
Bosch System Controller
Intuvia 100
Mini Remote
Charger
2A Charger
Rear Derailleur
SRAM NX Eagle, 12 Speed
Shifters
SRAM SX Eagle Single Click Trigger
Crankset
FSA CK-220
165mm
Chainring
SRAM CR T-Type 36T DM w/Chain Guard
Chain
SRAM SX Eagle
Cassette
SRAM PG1210, 11-50
Brakes
Shimano BR-MT420 Disc Brakes
Rotor
Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 180mm
Handlebar
Syncros 3.0 720mm, 31.8mm, 9°, 12mm rise
Syncros Comfort lock-on grips
H’stem
Syncros AM2.0, 6061 Alloy
31.8mm, 0°
Seatpost
Syncros M3.0, 31.6mm
350mm
Seat
Syncros Tofino E 2.0
Headset
Acros, 1.5″- 1.5″
semi integ. OD 50/61mm, ID 44/55mm
Hub (Front)
Formula CL-811, 15x110mm
Hub (Rear)
Formula CL-148S, 148x12mm
Spokes
Stainless Black
Rims
Cross X19, 32H, 30mm, Pin Joint
Tubeless ready
Front Tire
Kenda Booster 29×2.6″, 30TPI
Rear Tire
Kenda Booster 29×2.6″, 30TPI
Lights
Bosch Light Cable pre-installed F&R
Approx weight in KG
25.8
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
