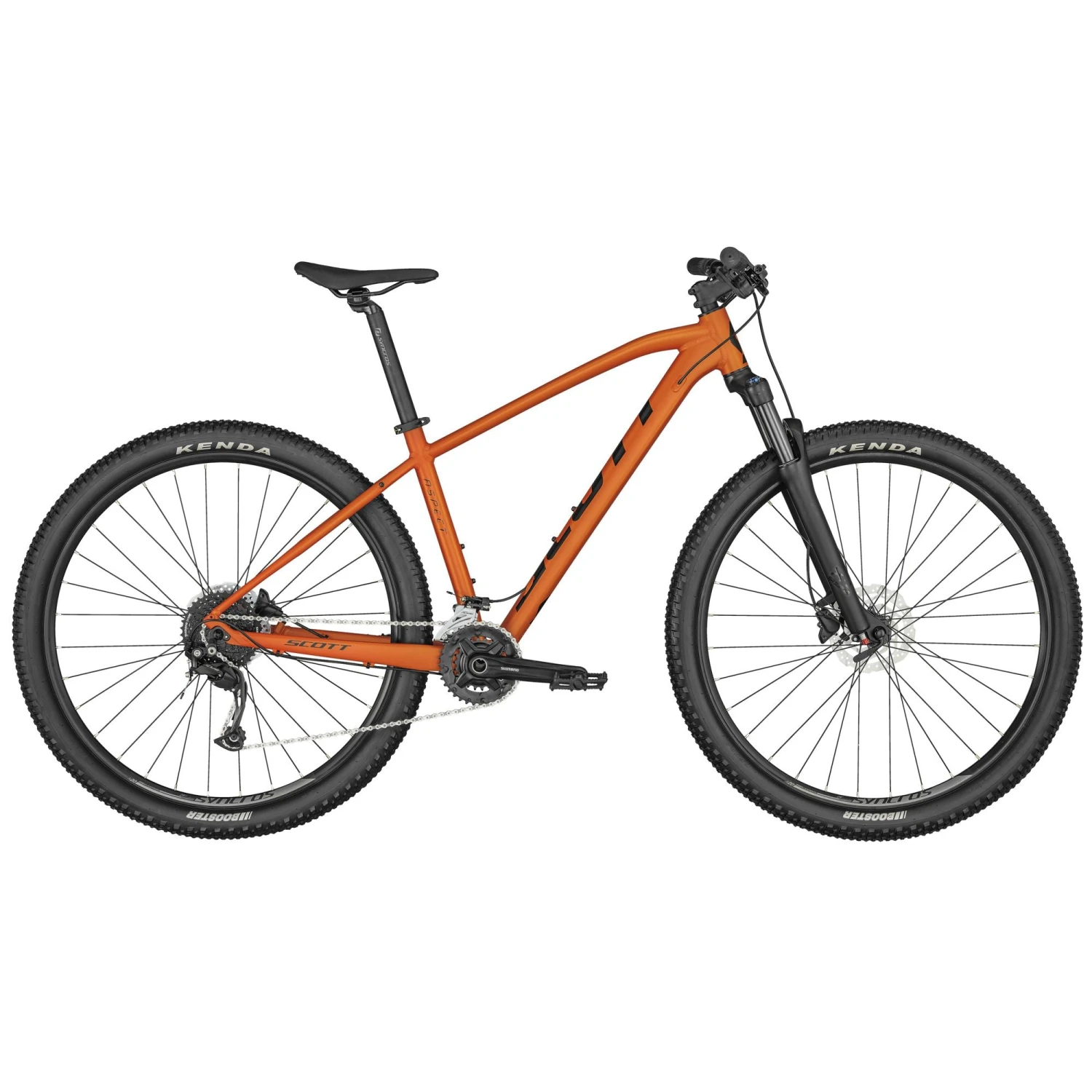

Scott Aspect 940 Orange 2025 Mountain Bike

The SCOTT Aspect 940 is a hardtail mountain bike that is designed to be light, efficient and reasonably priced. Featuring a lockout mechanism for the fork, disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

29″ wheels on this model. See images for size guide.

Please note that bike specifications are subject to change without prior notice

Frame
Aspect 900-700 series / Alloy 6061 Custom Butted Tubing
BSA73 / Internal Cable Routing / replaceable hanger
Fork
Suntour XCR32/X1-RL-R / Hyd. Lockout / Reb. Adj.
100mm travel
Rear Derailleur
Shimano Alivio RD-M3100
18 Speed
Front Derailleur
Shimano FD-M3120 Side Swing / 31.8mm
Shifters
Shimano SL-M3100
R-fire plus / 2 way release
w/gear indicator
Crankset
Shimano FC-MT2102
2-piece Design / 36X22
BB-Set
Shimano BB-MT500
Hollowtech II / threaded
Chain
KMC X9
Cassette
Shimano CS-HG200-9 / 11-36T
Brakes
Shimano MT200 / Hydr. Disc
Rotor
Shimano SM-RT10 CL rotor / F&R 160mm
Handlebar
Syncros 3.0 / 720mm
black / 31.8mm / 12mm rise / 9° BS
Syncros Pro Grip
H’stem
Syncros 3.0 / 7° / Black
Seatpost
Syncros 3.0
31.6mm / 350mm / Black
Seat
Syncros 3.0
Headset
Syncros OE Press Fit / 1 1/8″
OD 50mm / ID 44mm
Hub (Front)
Shimano HB TX505
Hub (Rear)
Shimano FH-TX5058
Spokes
14 G / stainless / black
Rims
Syncros X-20 Disc
32H / black
Front Tire
Kenda Booster
2.4″ / 30TPI
Rear Tire
Kenda Booster
2.4″ / 30TPI
Pedals
VP VP-536
Approx weight in KG
14.15 (with tubes / wo Pedals)
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

Continuous seasonal model.
