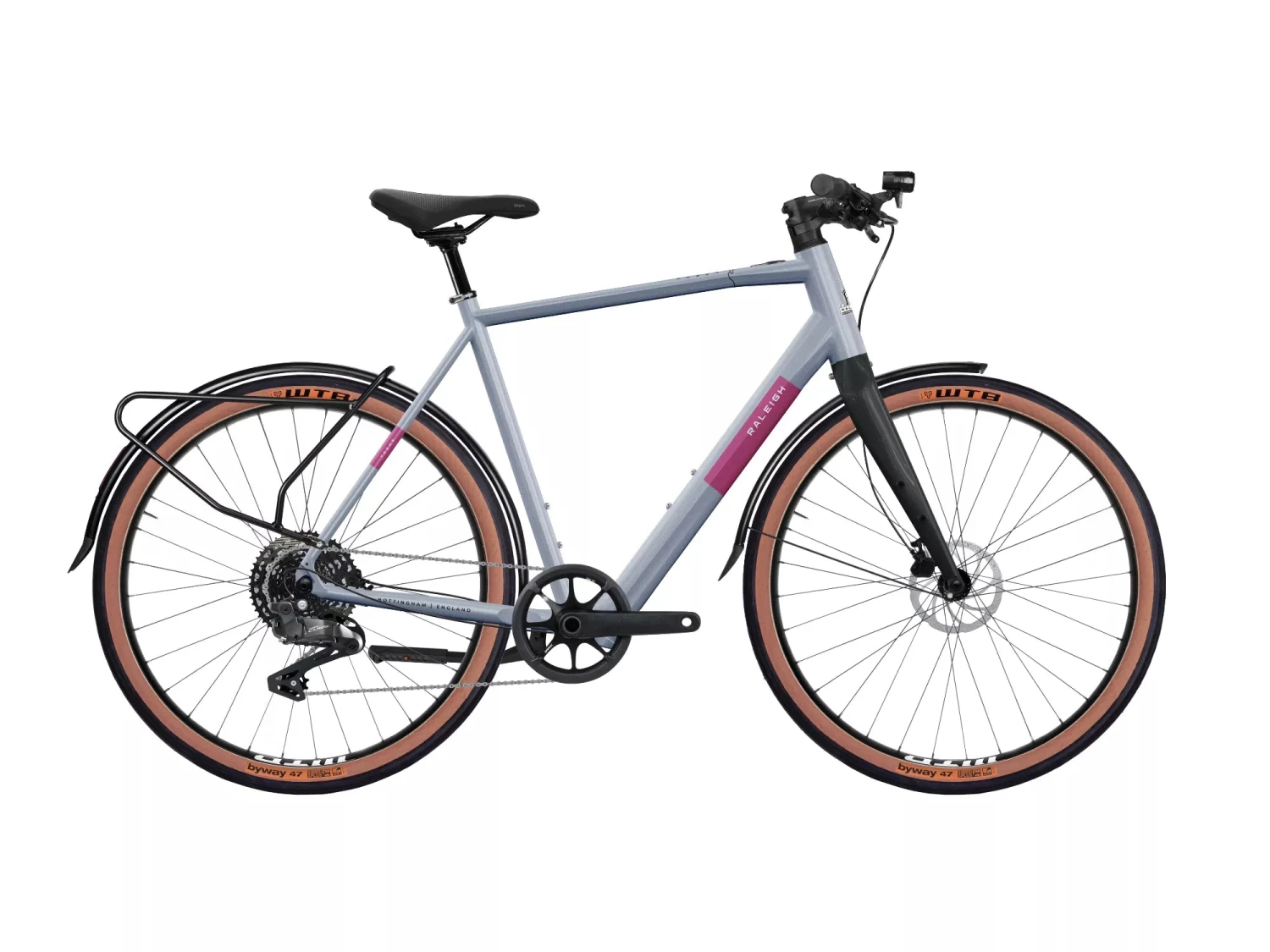

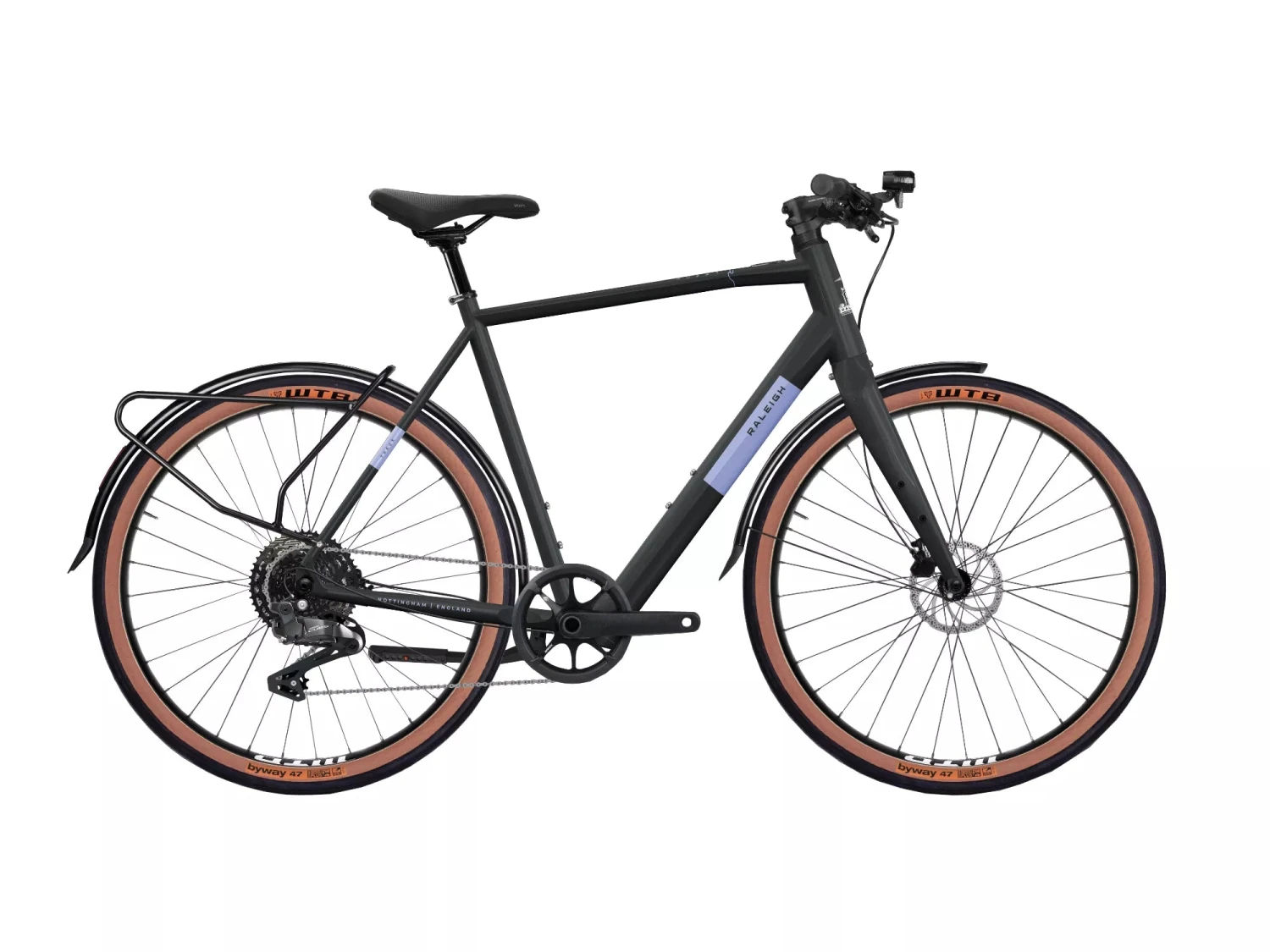

Raleigh Trace 2025 Electric Hybrid Bike

Tap in, tap out, press start, press stop. Have you ever considered how much fun your journey could be if it weren’t for timetables, traffic jams, and diversions? The freedom to go whenever and wherever almost sounds too good to be true. Except, it’s not.

No fumes, more zooms, make tracks around the city that leave no trace. We designed Trace to be your call to fun and freedom. Wave goodbye to gridlock, there’s adventure to be had; and all before 9 am.
This lightweight, electric bike makes nipping about the city 10x more enjoyable. The unassuming frame hides a 250Wh battery to give your journey a welcome boost – meaning you have time to prioritise the really important decisions; like what pastry to get with your morning coffee.
Make your mark and redesign your routine; no sweat, no grind, just ride.

Lightweight
Coming in at 16.5kg, this nimble electric bike can nip about the city with ease. Apartment living? No problem. Trace is designed to be heavy on features and light on weight.

It’s Electric?
It sure is. Though you’d never know from looking at it, would you? The stealthy electrical assistance is tucked away neatly into the frame, ready and waiting for when you need a little extra boost.

Fully Equipped
Lights, panniers, action. Geared up for hitting the tarmac, Trace has everything you need to explore your urban playground with ease.

Front Light
AXA Compact Line 35
Mudguards
Curana full mudguard set
Rear Carrier
Low profile Rear Carrier
Rear Light
Integrated into Mudguard

Front Tyre
700x40c WTB ByWAY tanwall
Front Wheel
700c double side wall rim with thru axle aluminium hub 28H
Inner Tubes
622×40 schrader valve
Rear Tyre
700x40c WTB ByWAY tanwall
Rear Wheel
700c double side wall rim with X35 motor hub 32H
Rim
700c double side wall rim with thru axle aluminium hub 28H

Bottom Bracket
Pressfit BB 86mm
Cassette
Shimano HG200 9 speed 11-34t
Chain
KMC x9 9 speed chain
Crankset
Aluminium crank with direct mount chainring and Chainguard 40t 170mm
Drivetrain
Chain
Gear Shift
Derailleur Gear
Pedals
Aluminium Platform Pedal
Rear Derailleur
Shimano Alivio 9 speed rear derailleur

Front Brake
Tektro R280 Flat Mount Hydraulic Disc Brake, 160mm
Number of Gears
9
Rear Brake
Tektro R280 Flat mount hydraulic disc brake, 160mm
Rear Shifter
Shimano Acera rapidfire 9 speed shifter

Grips
XLC Comfort Grips
Handlebar
Aluminium Handlebar 640mm
Saddle
Selle Royal Vivo
Seatpost
Aluminium Seatpost 27.2x350mm
Seatpost Clamp
Aluminium Clamp 31.9
Stem
Aluminium Stem XS/S-80mm, M-90mm, L-100mm

Battery
MAHLE X35 internal battery 250Wh
Battery Charger Type
MAHLE X35 2A
Battery Charging Time
4 hours
Battery Integration
Internal
Battery Watts per Hour
250Wh
Display
MAHLE X35 internal battery 250Wh
Max Range
50 miles
Motor
MAHLE X35 rear hub
Motor Position
Rear Wheel
Sensor
MAHLE Sensor

Electric
Yes
Fork Material
Carbon
Fork Type
Rigid tapered carbon fork
Frame Material
Aluminium 6061
Frame Shape
Crossbar
Total Bike Weight
16.5kg
