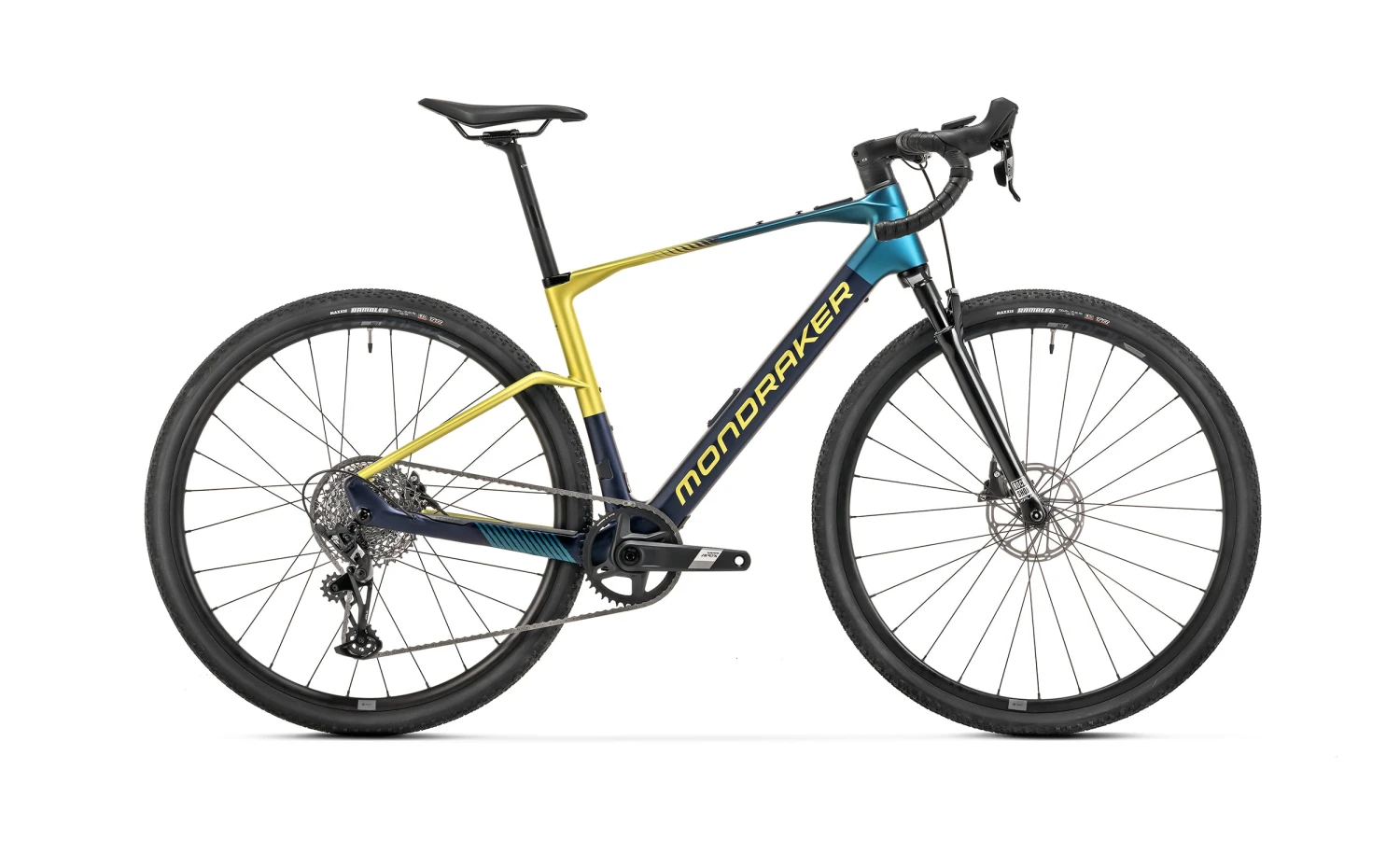

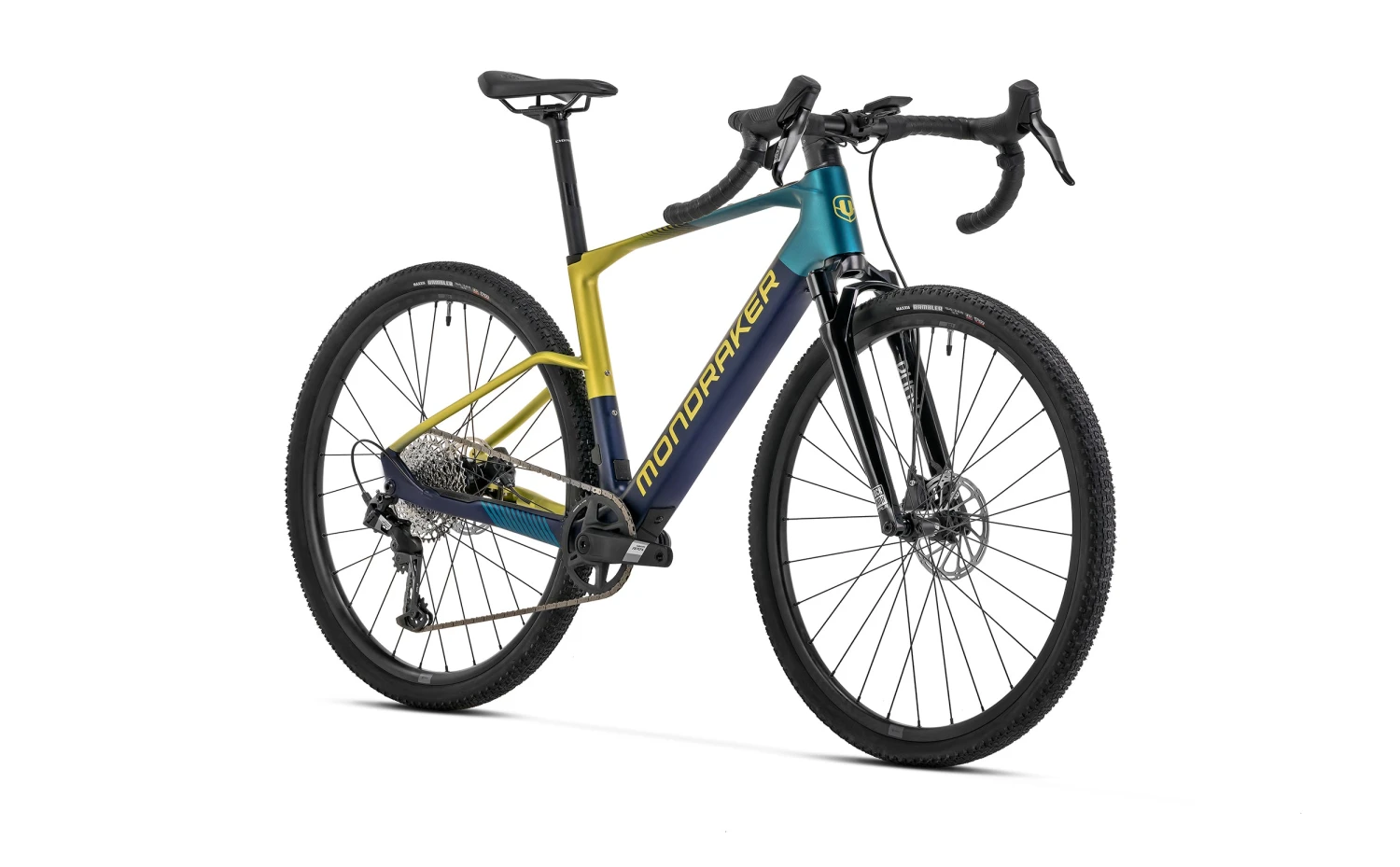

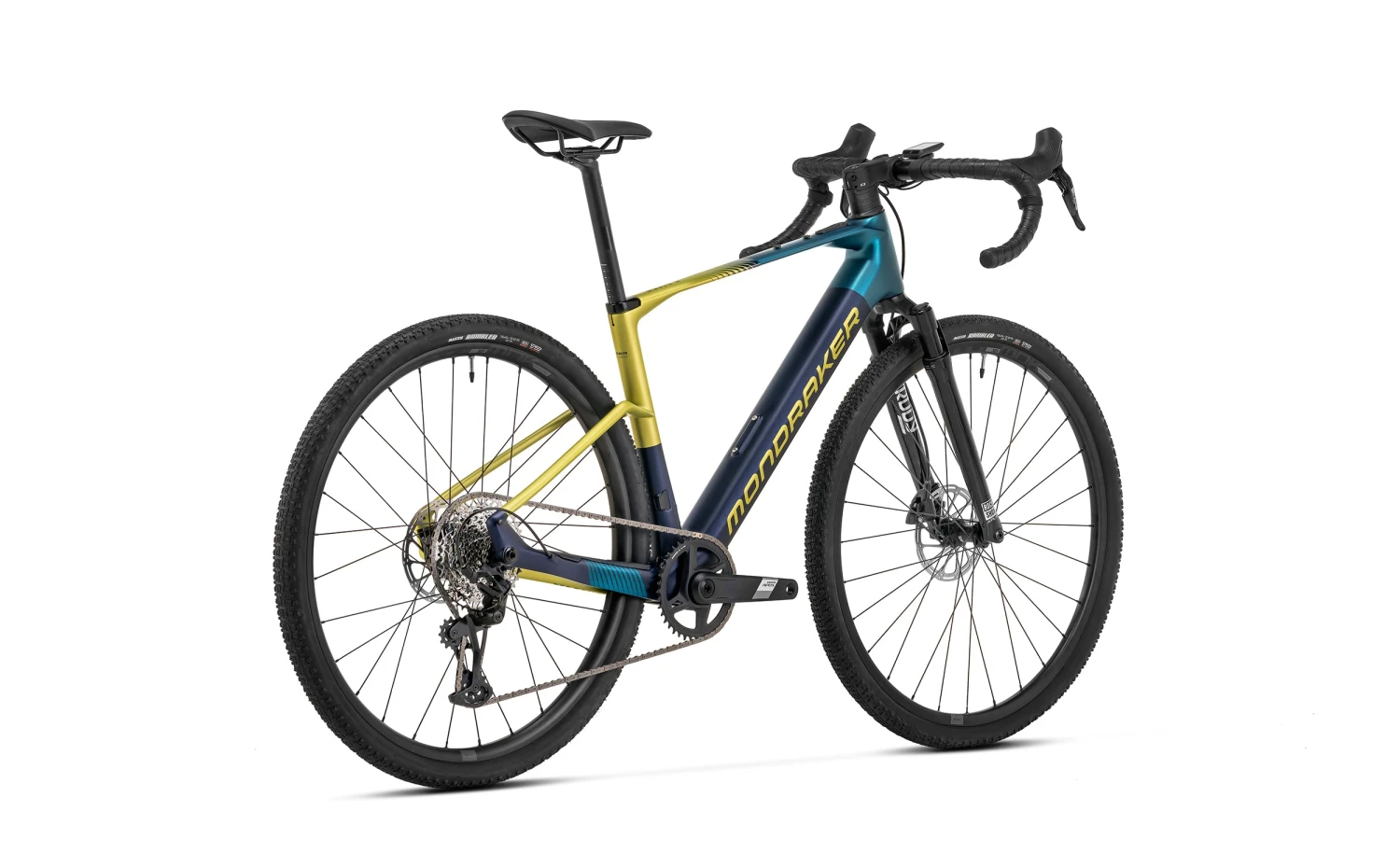

Mondraker DUSTY R Midnight Blue Electric Gravel Bike

The DUSTY R retains its current rigid fork version in two available colors, adding a new option with a 40mm travel RockShox Rudy suspension fork with lockout, as well as a fully customized paint scheme in Midnight Blue, Tonic Gold, and Teal Green. This makes the DUSTY R, along with the top-of-the-line DUSTY XR, the two models in the range with a suspension fork. The rest of the build and components remain the same as the DUSTY R with a rigid fork.

Frame

e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.

Sizes

S: 440mm / M: 460mm / L: 500mm / XL: 530mm

Fork

RockShox Rudy Base, 40mm travel, 12x100mm maxle stealth, 45mm offset

Headset

Onoff IS52/IS52, 1-1/8″, 1.5″ head tube, sealed bearings, Internal cable routing.

Stem

OnOff S3 GR 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm

Handlebar

OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm

Grips

OnOff HEX Bartape

Seatpost

Onoff S3 0-R, diameter 31.6mm, length 400mm

Saddle

FIZIK Terra Argo X7 150mm

Front brake

SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers

Rims

MDK-XG1, 25mm internal width, tubeless ready, 28 spokes

Spokes

CN round stainless steel

Front hub

Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts

Rear hub

Mahle X20 Drive Unit, HG freehub

Front tire

Maxxis Rambler 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Rear tire

Maxxis Rambler 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Crankset

SRAM Apex 1 Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm

Rings

Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,

Bottom bracket

Mahle DUB pressfit, sealed bearings, w/ torque sensor

Chain

Sram Apex, 12s, Powerlock

Rear derrailleur

Sram Apex XPLR 12s

Shift levers

Sram Apex D1 12s, X-Actuation 1:1, single click

Casette

Sram PG 1231 11-44, 12s

Derailleur hanger

Mondraker M076

Weight

14.1 kg

Display

Pulsar One Wireless

Motor

Mahle X20 Drive Unit

Battery

Mahle X20 IX350Wh
