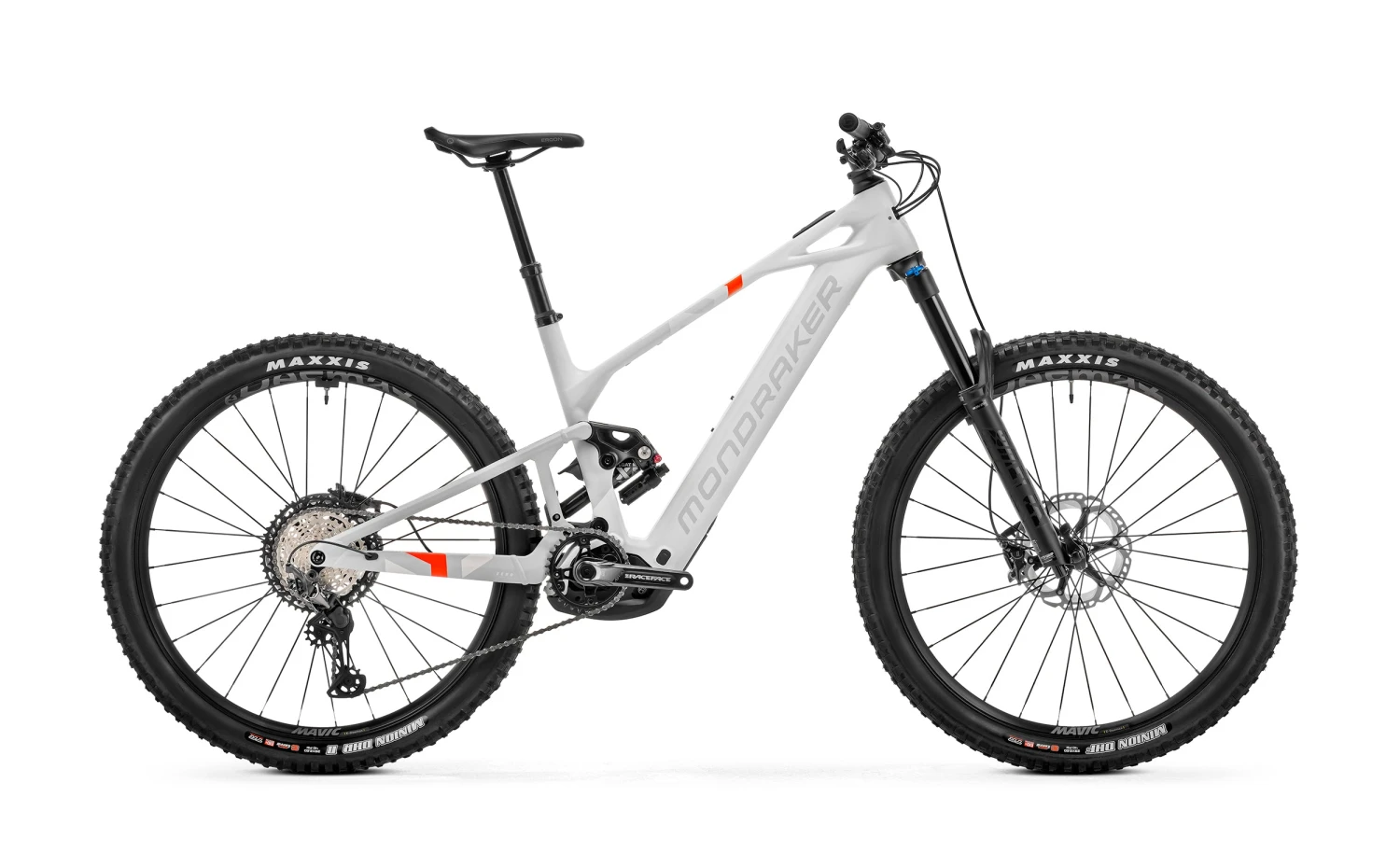

Mondraker CRAFTY CARBON R Bunker Grey 2025 Electric Mountain Bike

The Crafty Carbon R is the ticket to the best range of ebikes in Mondraker’s history. The new Bosch CX motor at the heart of the machine works in combination with the fully removable 800Wh Bosch battery via a simple cover at the bottom of the down tube. The only model in the range equipped with Shimano XT M8100, both on brakes with the 4-piston XT and on the 12-speed XT transmission and a 10-51 cassette. Available in two colours: Bunker Grey / Fog Grey / Flame Red and Black / Nimbus Grey / Tonic Gold.

Frame

Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock

Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork

Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Forest, CNC lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle

Ergon SM-10

Front brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Rear brake

Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Brake lever

Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

Rims

Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes

Mavic J-bend double butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub

Front tire

Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset

Race Face Aeffect-R ebike, 160mm

Rings

Race Face, 34T, steel, direct mount

Chain

Shimano XT M8100, 12s

Rear derrailleur

Shimano XT M8100, SGS, Shadow+

Shift levers

Shimano XT M8100, Rapid Fire Plus, 12s

Casette

Shimano XT M8100 10-51T Hyperglide+, 12s

Derailleur hanger

Sram UDH

Weight

23,9 kg

Display

Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor

New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 800Wh
