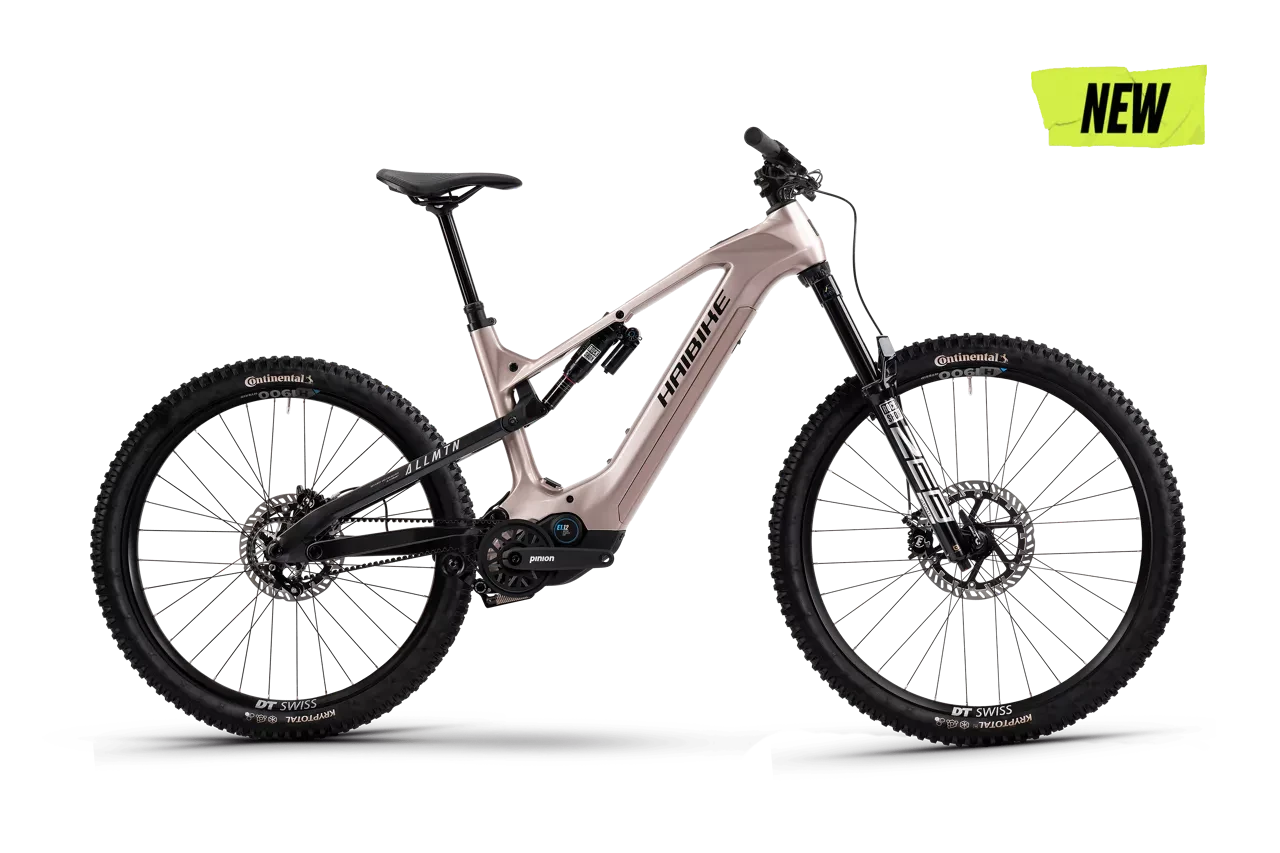

Haibike AllMtn CF 11 TRN IQ Auto Gears Motor 2026 Electric Mountain Bike

Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 11 TRN/IQ delivers just that – and even more. This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!

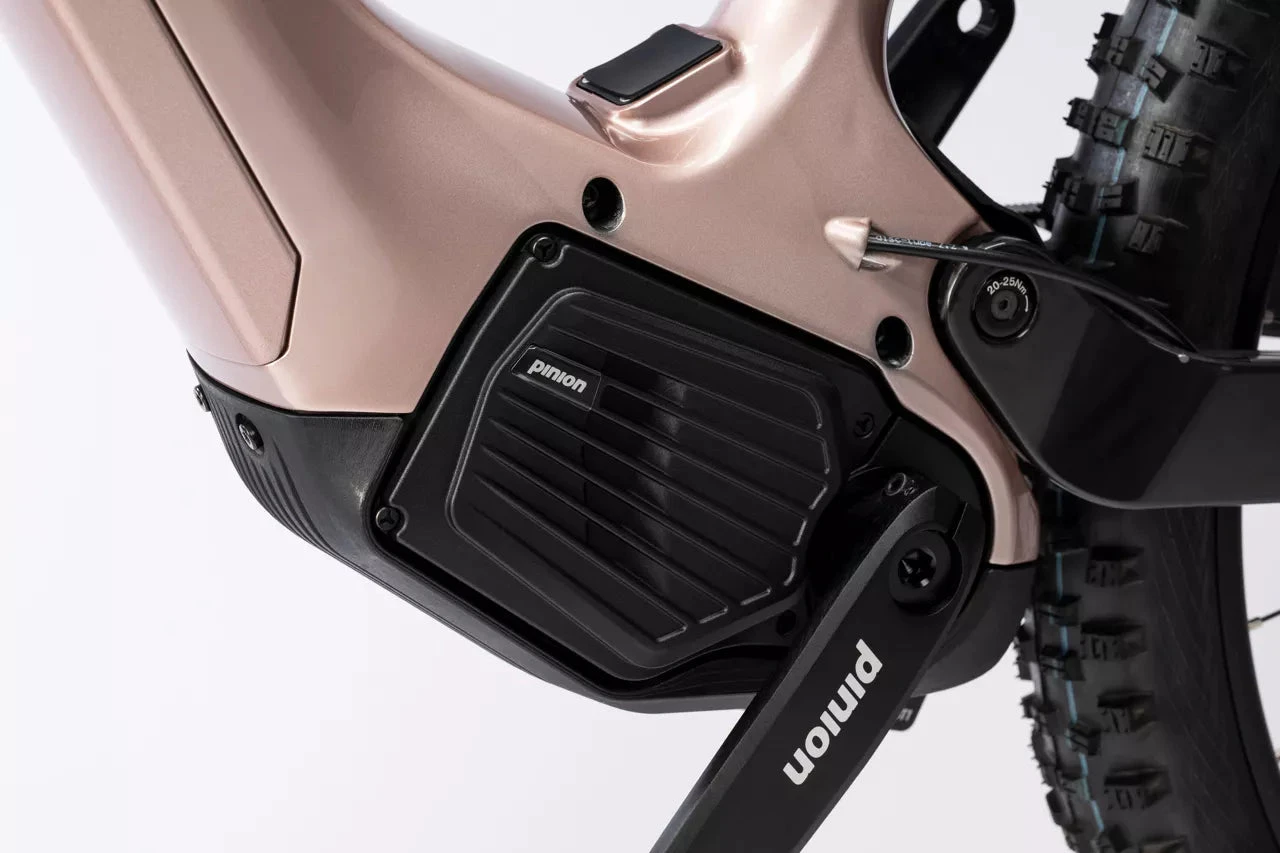

Pinion MGU E1.12 Motor and 12-Speed Transmission in One

At the heart of the new AllMtn CF TRN/IQ is the Pinion MGU E1.12 – a compact unit combining a powerful electric motor with a precise 12-speed gearbox.

Thanks to electronic shifting technology, you shift seamlessly and reliably—even under load.

Derailleur and cassette? A thing of the past—meaning no broken parts, no constant readjustments, just pure ride focus.

Specifications

e-System
Battery
Pinion InTube 800Wh
Battery brand
Pinion
Battery capacity
800 Wh
Charger
Pinion FIT Standard Charger 48V
Display
Pinion FIT Master Node Display + Remote Pure
E-bike system
Pinion
Maximum support speed
25 km/h
Motor
Pinion E1.12 Motor Gearbox Unit
Motor torque (nm)
85 Nm

Drive
Cassette

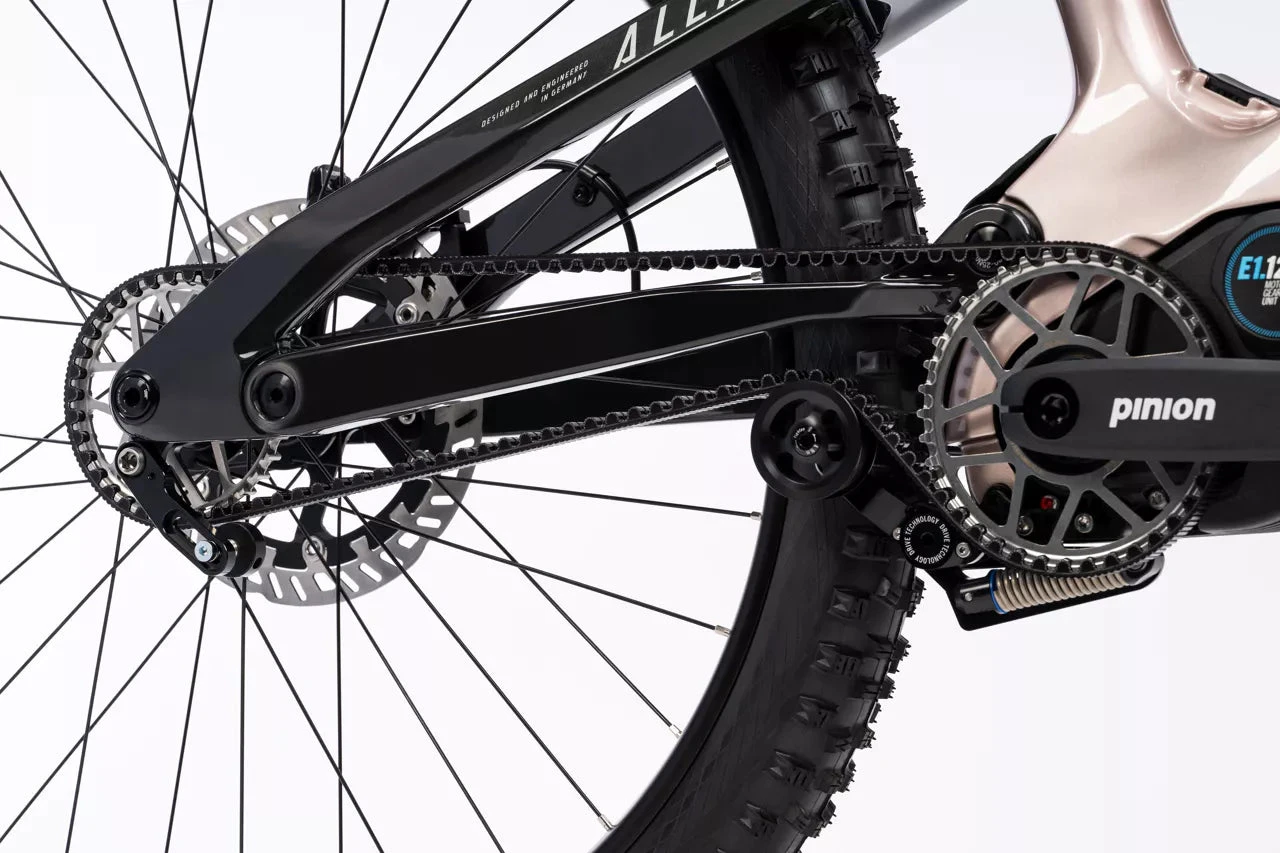

Gates Carbon Drive CDX Sprocket, 9 Spline
Chain
Gates Belt Carbon Drive Belt CDX, 120T
Crankset
Pinion Forge Crankset + GATES CDX front sprocket w/ Guard 165
Frame
High Carbon Uni
Frame material
Carbon
Frame shape
High
Frame size
42 cm
Gear
Pinion Gearbox
Max permissible weight (Rider, Cargo and Bike)
135 kg
Number of gears
12
Shifter Right
Pinion Triggershift Smart Shift TE1 E-Trigger

Suspension
Front Fork

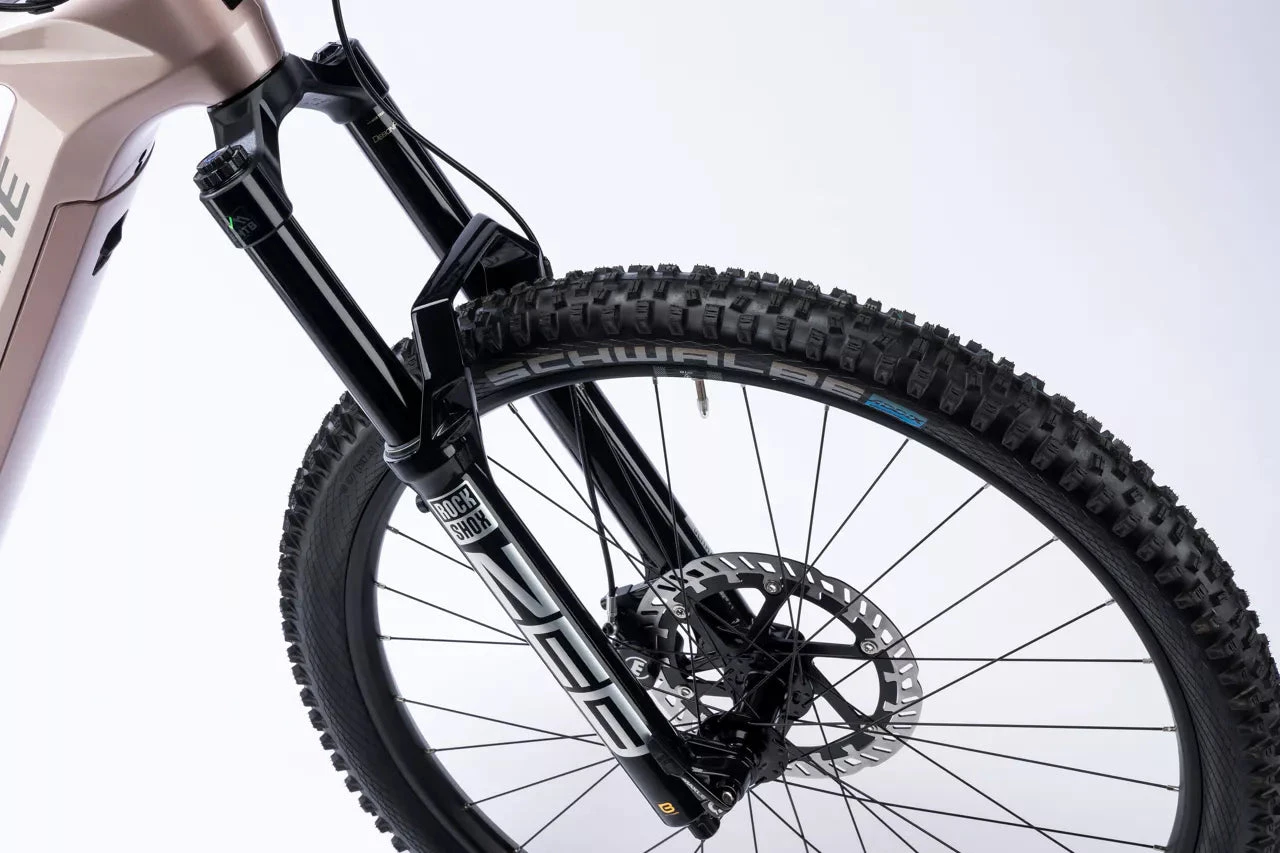

Rockshox ZEB Ultimate Charger 3.1 RC2, DebonAir 160 mm
Shock

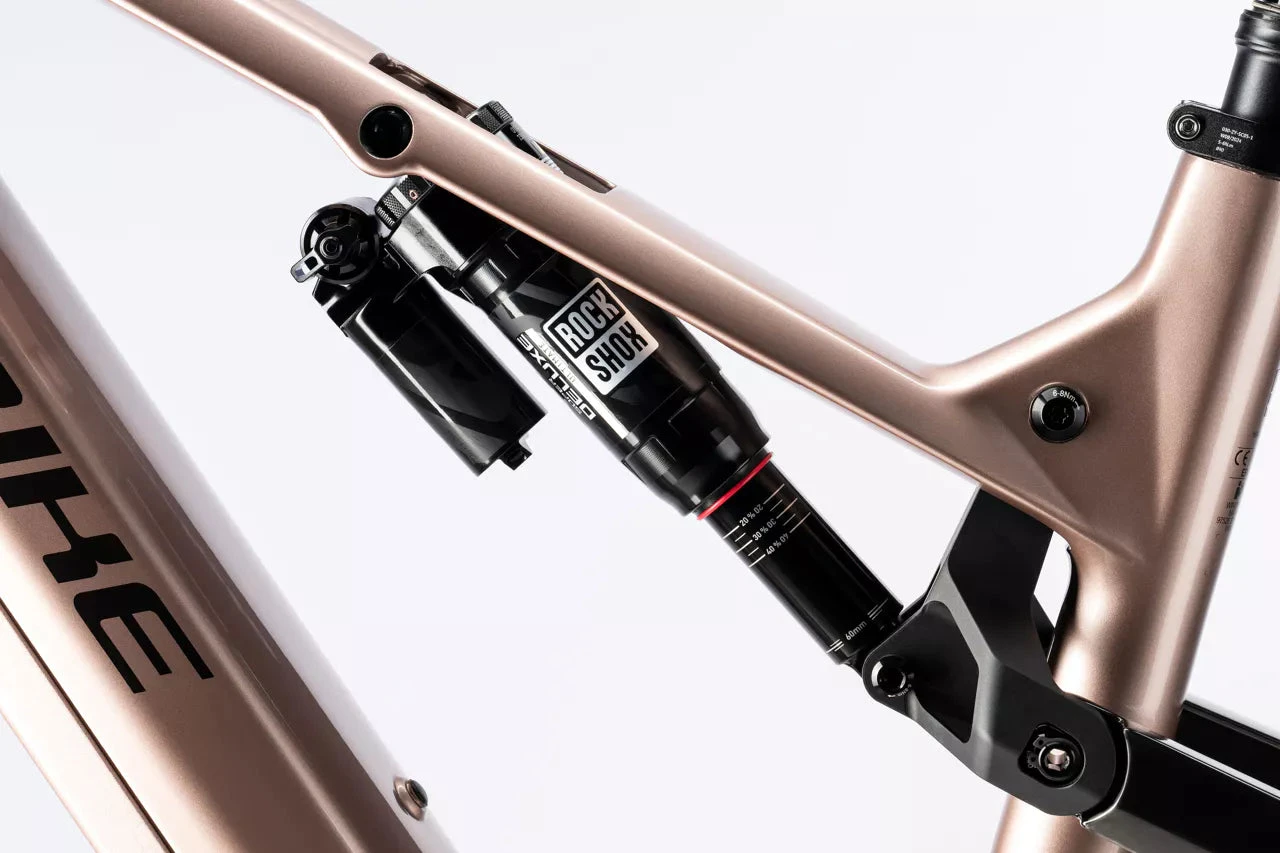

Rockshox Super Deluxe Ultimate RC2T 230x60mm, DebonAir
Travel
160 mm

Components
Brake light
No
Brake Rear
Magura Hydraulic Disc brake MT5, 4 pistons, 203 mm
Front brake
Magura Hydraulic Disc brake MT5, 4 pistons, 203 mm
Grip kind
MTB Grip Set VLG-1751D2
Handgrip brand
XLC
Handlebar

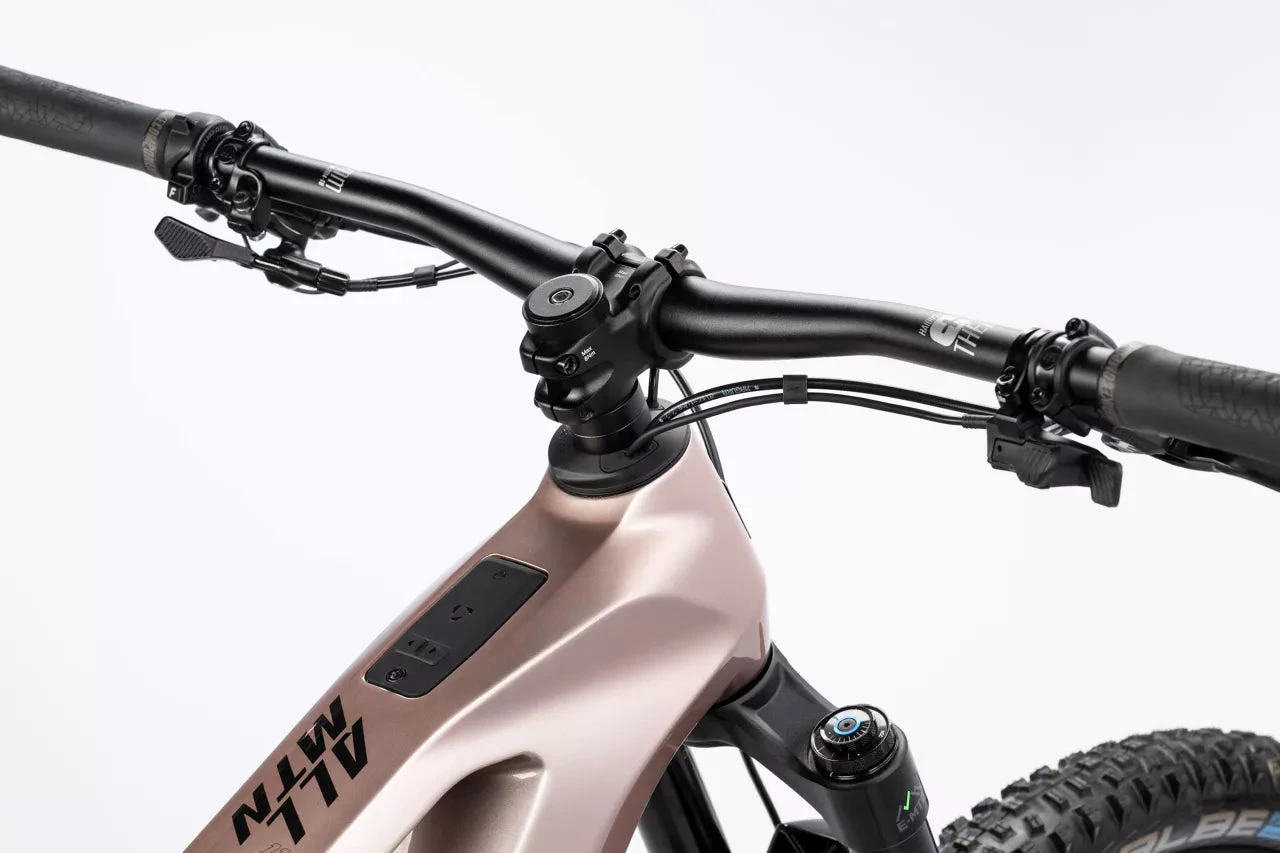

Haibike Flat bar TheBar++ Dia. 31.8 mm
Pedal
VP VPE-527 Alloy w/ Reflector
Saddle
Selle Royal Vivo 1216HRN
Seatpost
Limotec Dropperpost A4H Dropper, Dia. 34.9 mm, Travel: 150 mm

Wheelset
Front wheel size
29
Rear wheel size
27.5
Tyre
Continental Kryptotal-Fr, Enduro Soft, foldable skin SL 60-622
Tyre size ETRTO
60-622
*The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike are not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems due to the Corona pandemic.
