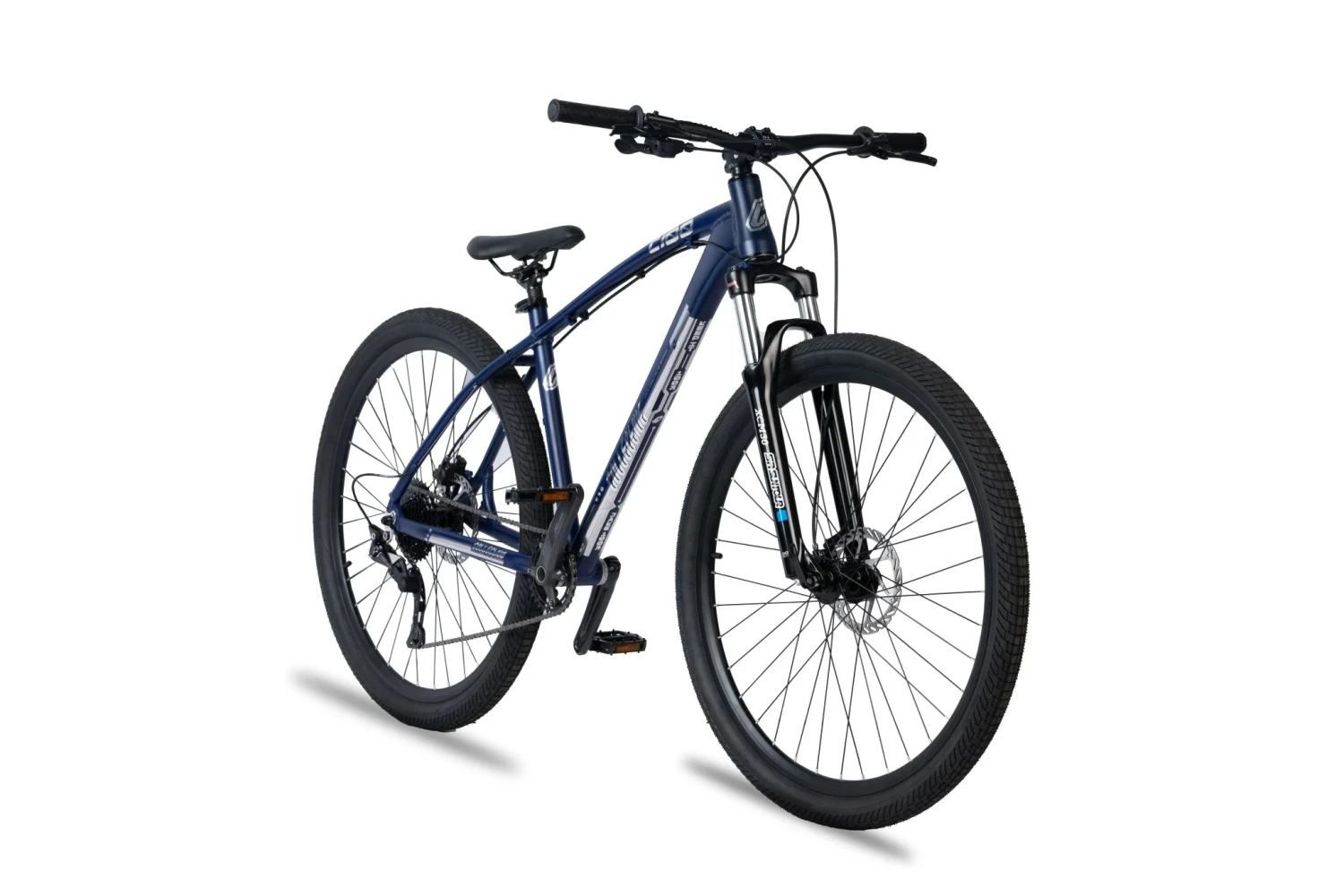

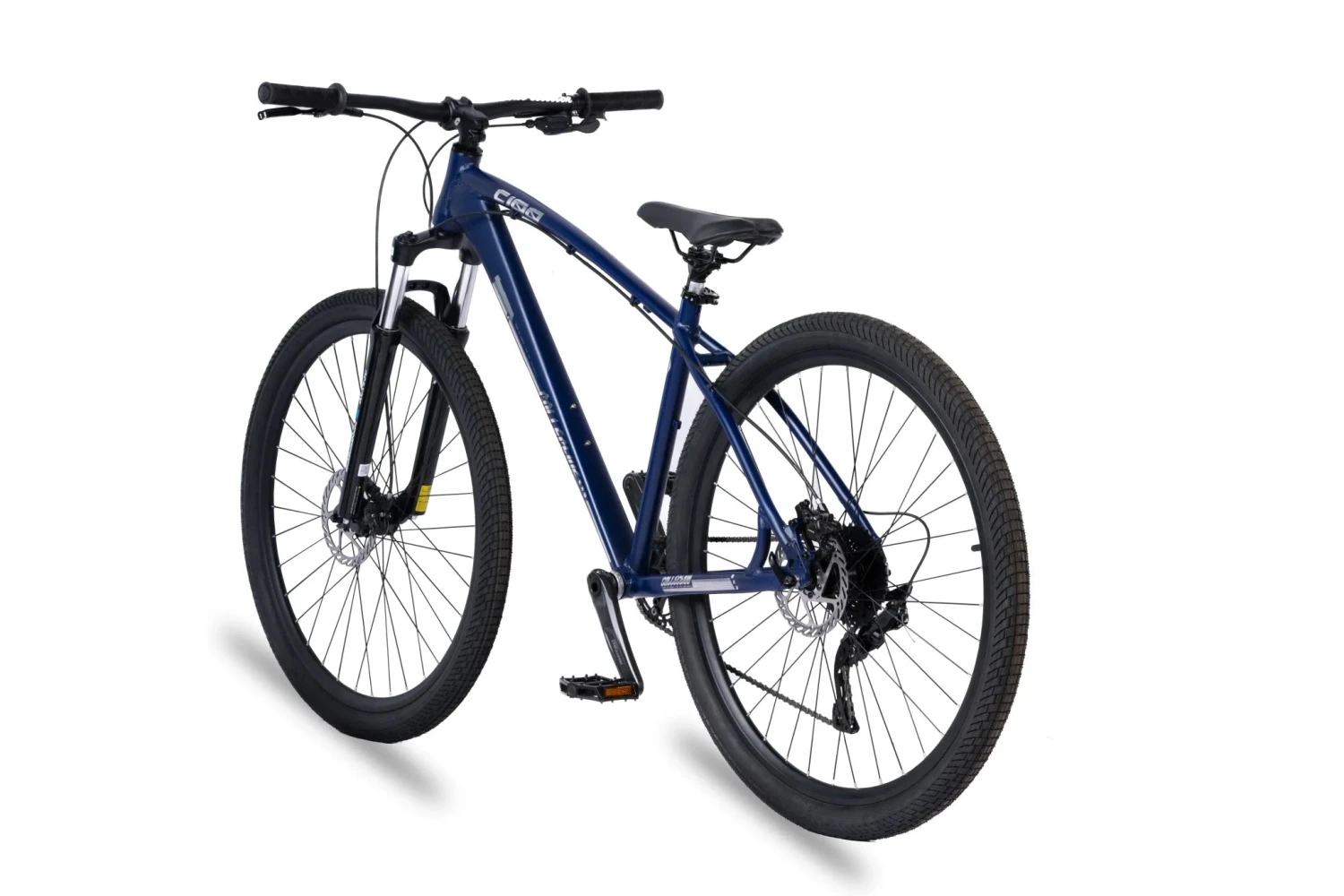

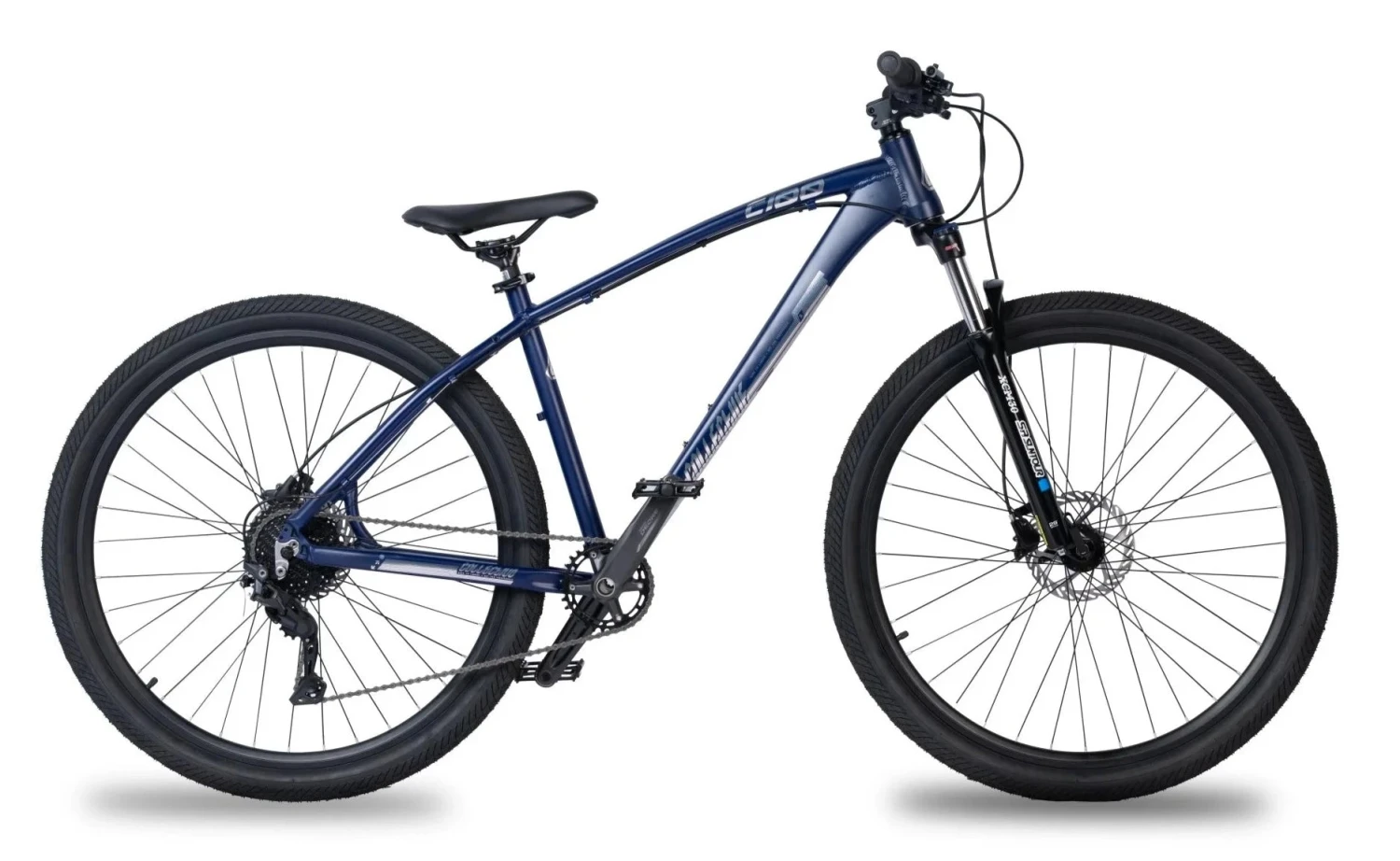

Collective Bikes C100 V3 Quantum Navy Bike



ESSENTIAL

“Keepin’ it so 100, we put it in the name. We could say that the C100 is the worlds first Mountain Bike designed specifically for wheelies and the ability to do all the things you expect from a high specification MTB… but that would be boring; we’re sure you’ve seen the hype..”

NEW LOOK – NEW LIFE

We know when we have a good thing going… but it was time for a switch up! New evolution of a staple classic.

• Reinforced heat-treated 19″ 6061-T6 alloy frame
• 100mm travel forks
• Shimano MT-200 hydraulic brakes.
• Shimano Deore crank.
• Shimano Deore M420 10-speed derailleur.

Designed by Collective for Jake100.

Frame: 19″” Alloy aluminium with reinforced rear triangle

Fork: 100mm travel, 9x135mm QR axle and 1-1/8 inch steerer. The travel can be locked out using the upgraded lock out function.

Stem: Collective Bikes custom short Alloy LA-490-8, 50mm

Headset: Collective Custom Steel head, 28.6X34X30mm, threadless, 2 x 5mm Black Alloy Spacers

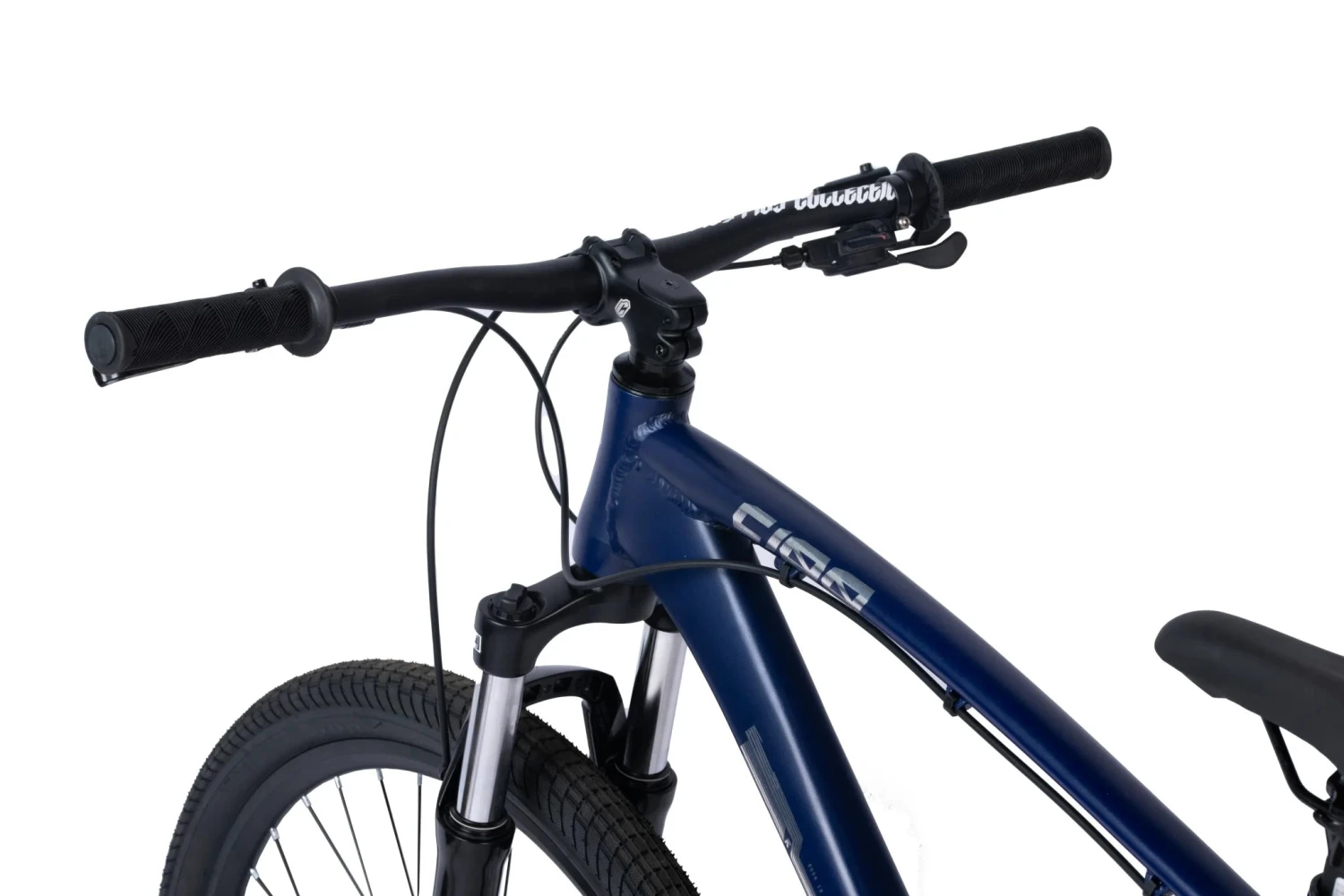

Handlebar: Collective Bikes Custom Alloy butted 740mm

Grips: Collective Speed tight

Seat Clamp: 31.8mm

Seat Post: 27.2mm

Brakes: Shimano Acera Hydraulic Disc Brakes Front and Rear

Shifter: Shimano Deore 10 Speed Trigger Shifter

Derailleur: Shimano Deore Shadow+ 10 Speed

Bottom bracket: Shimano Deore Hollowtech II Bottom Bracket

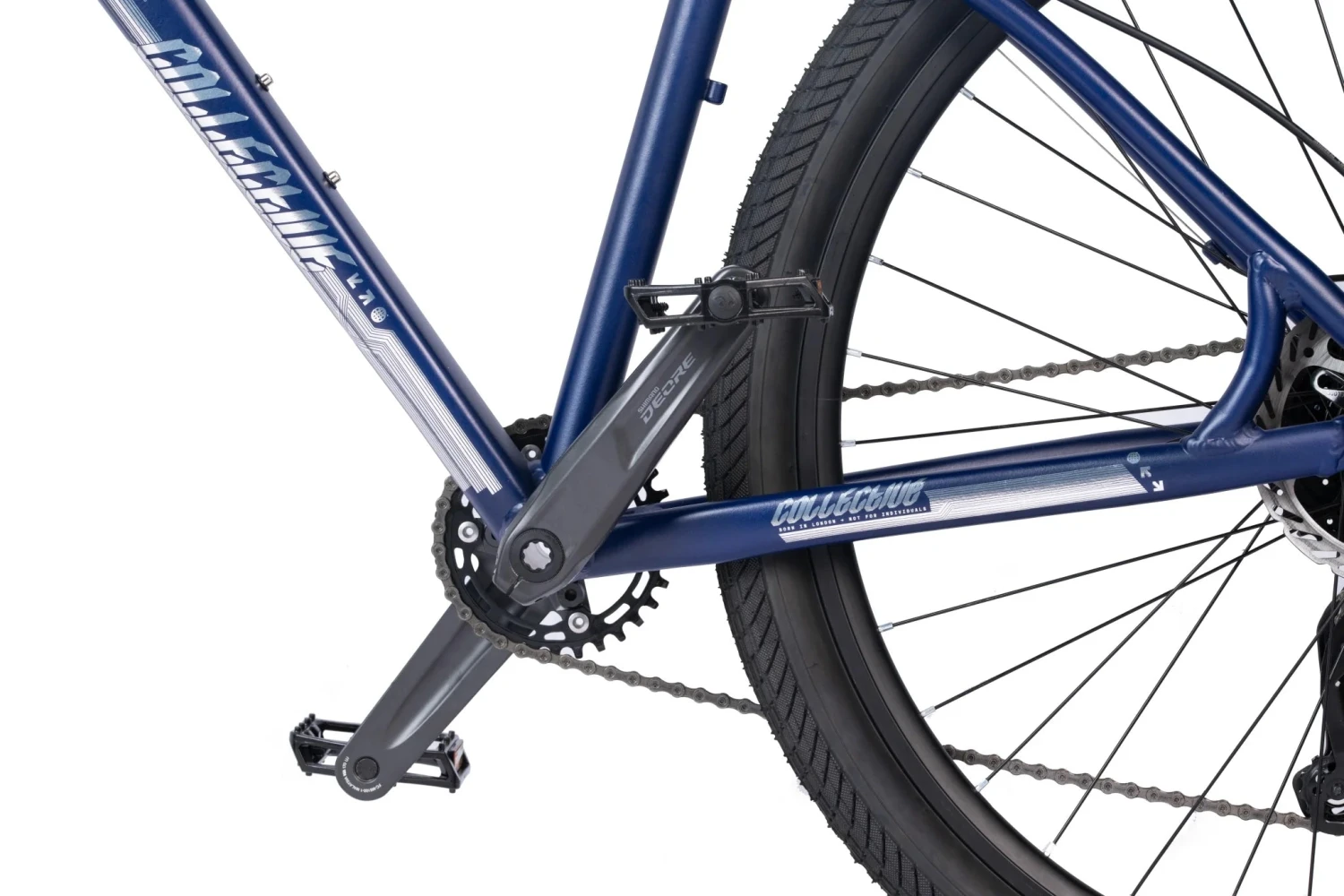

Crank: Shimano Deore 10 Speed Chainset

Chain: KMC 3/32”x1/2”x110 Links

Cassette: Shimano Tiagra HG500 10 Speed Cassette 11-34

Rims: Collective 29″” Double wall 32 hole

Hubs: Pro 36 hole nutted fully sealed hubs with new 4 pawl cassette

Spokes: Collective F UCP(263mmL) /R UCP(261/263mmL)

Tires: KENDA Kwick Nine 29er Tire Black 2.1″” Width

GEOMETRIES
A: Top Tube (Effective) 24.055 (611mm)
B: Seat Tube (c-t) 17.992 (457mm)
C: Head Tube Angle 71 DEGREES
D: Seat Tube Angle 73 DEGREES
E: Chainstay Length 17.91 (455mm)

MORE GEOMETRIES
F: BB Drop 2.36 (60mm)
G: Wheelbase 43.56 (1106.6mm)
H: Head Tube Length 4.72 (120mm)
I: Stack Height 28.38 (721.1mm)
J: Reach 23.04 (585.4mm)
K: Standover 30.70 (780mm)
L: Fork Height 19.5 (497mm)
M: Fork Offset 1.49 (38mm)
